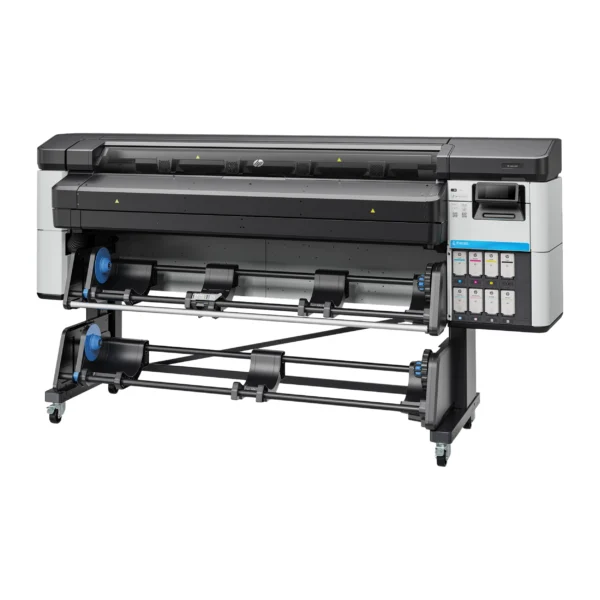

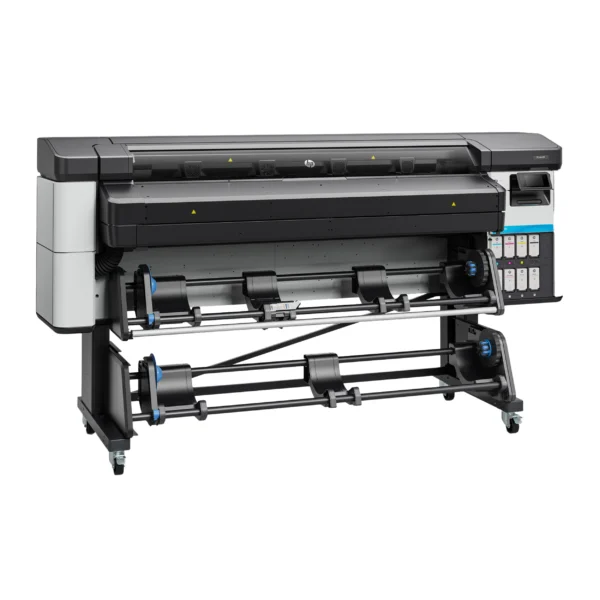

HP Latex 630
Wide Format Latex Inkjet Printer | 64-Inch | Water-Based Inks | Indoor & Outdoor Signage
OVERVIEW
The HP Latex 630 Printer is a 64-inch-wide format printer designed for sign shops, print service providers, and visual communication businesses that demand outstanding image quality, operational efficiency, and environmental responsibility. Powered by HP’s water-based Latex ink technology, it delivers vivid, fade-resistant prints across a versatile range of substrates — from vinyl and banners to textiles and wall décor — with prints that emerge dry and ready for immediate finishing.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex 630?
| Print Resolution | Up to 1200 × 1200 dpi |
| Print Speed | 377 ft²/hr (Max, 2-pass) 151 ft²/hr (Standard, 6-pass) 71 ft²/hr (Backlits/Textiles, 14-pass) |
| Ink Types | Water-based HP Latex Inks (8 Colors incl. Optimizer & Overcoat) |
| Printheads | 5 user-replaceable HP 836 Printheads |
| Color Repeatability | 95% of colors < 3 dE2000 |
| Roll Width | 18–64 inches (full support 23–64 inches) |
| Max Roll Diameter | 9.8 inches |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Printer Dimensions | 102.5 × 33.2 × 55.3 in (W × D × H) Weight: 507 lb |
| Operating Conditions | 59–86°F 20–80% RH (non-condensing) |
| Power Consumption | 1.4–2.1 kW printing 85 W ready 0.25 W off |
| Certifications | ENERGY STAR®, UL ECOLOGO®, EPEAT, UL GREENGUARD Gold, RoHS, REACH |
| Warranty | One-year limited hardware warranty |
Description
Exceptional Print Quality
- Up to 1200 × 1200 dpi resolution — razor-sharp text and smooth color gradients
- Standard speed of 151 ft²/hr (6-pass) delivering consistent, production-ready output
- 95% of colors achieve < 3 dE2000 long-term print-to-print repeatability
- 6-color ink system: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta + Optimizer + Overcoat
Wide Application Range
- Banners, vehicle wraps, floor graphics, wall décor, window graphics
- Exhibition displays, POP/POS, interior decoration, light boxes, labels & stickers
- Supports films, papers, canvas, and a broad range of alternative substrates
- Compatible with rolls from 18 to 64 inches (full support from 23 to 64 inches)
Environmentally Responsible Printing
- Water-based HP Latex Inks — no harsh solvents, odorless prints certified by VDI 3882
- UL ECOLOGO® certified HP 832 Latex Inks — meets stringent human health & environmental criteria
- EPEAT registered, ENERGY STAR®, UL GREENGUARD Gold certified
- Cardboard-based ink cartridges reduce plastic by 33 tonnes annually vs. plastic cartridges
- Free ink cartridge recycling through HP Planet Partners program
Effortless Workflow & Reliability
- Automatic maintenance processes minimise downtime and operator intervention
- User-replaceable printheads — no technician required for routine head changes
- Fast automated front-loading system saves setup time
- 10 GB onboard job storage for easy reprints without resending files
- Cloud-based HP PrintOS (PrintBeat, Configuration Center, HP Learn) for remote monitoring
- Automatic horizontal cutter for vinyl, banner, canvas, and paper-based media
