HP Latex 830
64-Inch High-Volume Production Wide Format Printer | 3-Litre Inks | HP Pixel Control | Embedded Spectrophotometer
OVERVIEW

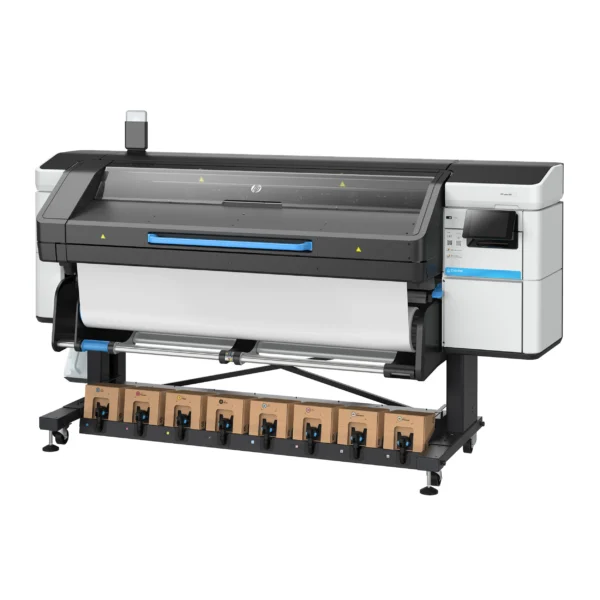

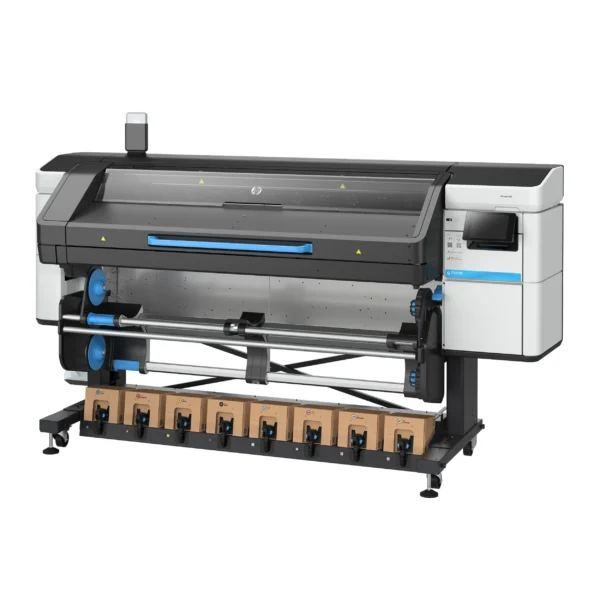

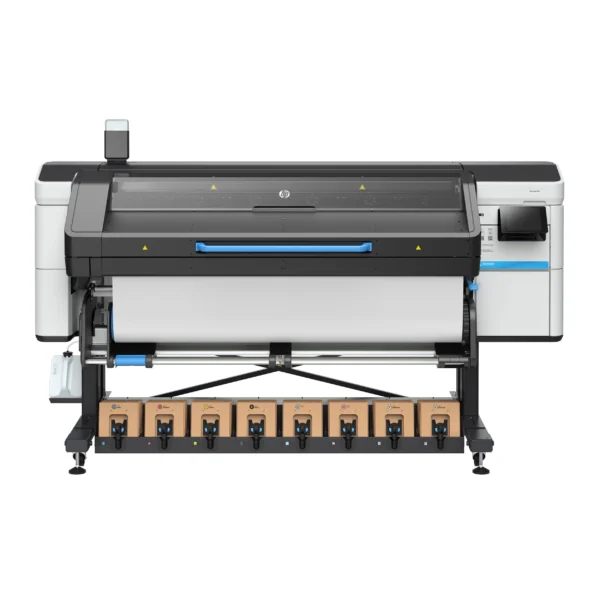

The HP Latex 830 Printer is HP’s high-volume 64-inch wide format production printer, engineered for print service providers and sign shops that demand the highest throughput, lowest running costs, and uncompromising color consistency. Building on the HP Latex 730, the 830 introduces HP 873 3-litre ink cartridges that can be changed while the printer runs — eliminating downtime mid-job — and raises production speeds to 388 ft²/hr draft and up to 36 m²/hour. Combined with HP Pixel Control ink mixing, an HP Embedded Spectrophotometer, and EPEAT Climate+ registration, the HP Latex 830 sets the standard for sustainable, high-value wide format production.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex 830?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies with HP Pixel Control |
| Ink Types | Water-based HP Latex Inks — 8 cartridges (CMYK, LC, LM, Optimizer, Overcoat) |
| Cartridge Size | 3 litres per cartridge (HP 873) — changeable while printer runs |
| Printheads | 8 user-replaceable (7 HP Latex Universal Printhead + 1 HP Latex Optimizer) |
| Color Consistency | HP Pixel Control + HP Embedded Spectrophotometer for on-printer ICC color profiling |
| Print Speed | 388 ft²/hr (Draft, 4-pass) 269 ft²/hr (Speed, 6-pass) 215 ft²/hr (Standard, 8-pass) 183 ft²/hr (Quality, 12-pass) 118 ft²/hr (High Quality, 16-pass) |
| Production Speed | Up to 36 m²/hour |
| Max Media Width | 64 inches |
| Roll Width | 16.5–64 inches (23–64 inches with full support) |
| Max Roll Weight | 121 lb |
| Max Roll Diameter | 9.8 inches |
| Max Media Thickness | Up to 19.7 mil |
| Media Types | Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles |
| Media Handling | Roll feed, take-up reel, wiper roller, media saver, automatic horizontal cutter |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Dimensions (W×D×H) | 101.7 × 34.1 × 55.2 in Operating area: 110 × 82.7 in |
| Printer Weight | 644 lb Shipping: 948 lb |
| Operating Conditions | 59–86°F 20–80% RH (non-condensing) |
| Power Consumption | 1.5–2.5 kW (5 kW peak) printing 95 W ready <0.25 W off |
| Acoustics | 60 dB(A) operating 38 dB(A) idle <20 dB(A) sleep |
| Warranty | One-year limited hardware warranty |
Description
Enhanced Production — Optimise Productivity and Cost
- HP 873 3-litre ink cartridges — triple the ink volume vs. 1-litre cartridges, change while the printer keeps running
- Dramatically reduced cost per m² on long runs — fewer changeovers, less waste, lower consumable overhead
- Universal printheads with 50% extended life — one printhead type for all color channels, reduced inventory
- New 50% longer-life maintenance cartridge with ink collection unit — fewer consumable changeovers
- Production speeds up to 388 ft²/hr draft (4-pass) — highest throughput in the HP Latex range
- Spindle-less front-loading and media saver — fast media setup and reduced substrate waste
- Print from the leading edge — no trim waste at the start of a roll
- HP PrintOS Production Hub — end-to-end workflow software for streamlined production management
- Beacon accessory included — enables remote status monitoring of the printer via LED beacon tower
Consistent Quality — High-Value Applications
- HP Pixel Control ink mixing and distribution for uniform colors across every job and every long run
- HP Embedded Spectrophotometer — create and verify ICC color profiles on the printer, no external hardware
- Automated double-sided printing on PVC-free media for efficient two-sided signage production
- Deliver vivid colors and sharp 4-point text with user-replaceable HP Latex Printheads
- Wide range of signage and décor applications across all supported substrate types
Lead the Way — Sustainable Operations
- Only EPEAT Climate+ registered printer in the signage industry — the highest environmental credential available
- Water-based HP Latex Inks — odorless prints certified neutral (hedonic tone) by Odournet per VDI 3882
- UL ECOLOGO® certified HP 832 Latex Inks meet stringent human health & environmental criteria
- HP PrintOS Sustainability Amplifier — track, reduce, and report your environmental footprint
- Returnable supplies via HP Planet Partners including new returnable maintenance cartridge
- ENERGY STAR®, UL GREENGUARD Gold, RoHS, REACH, French VOC A+, Meets AgBB criteria
