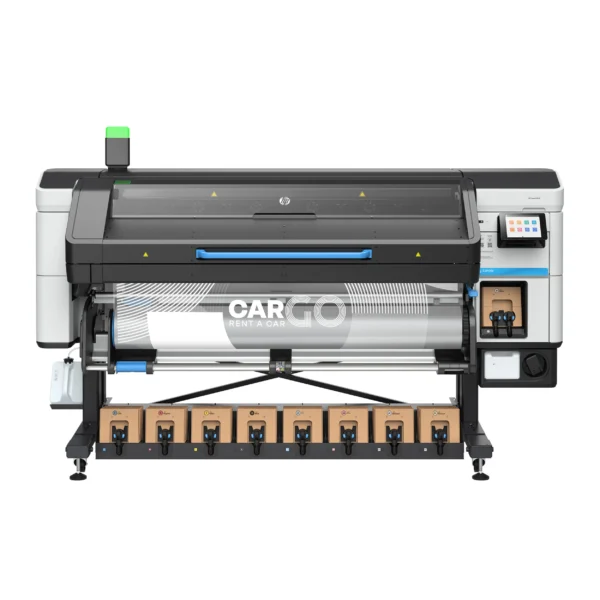

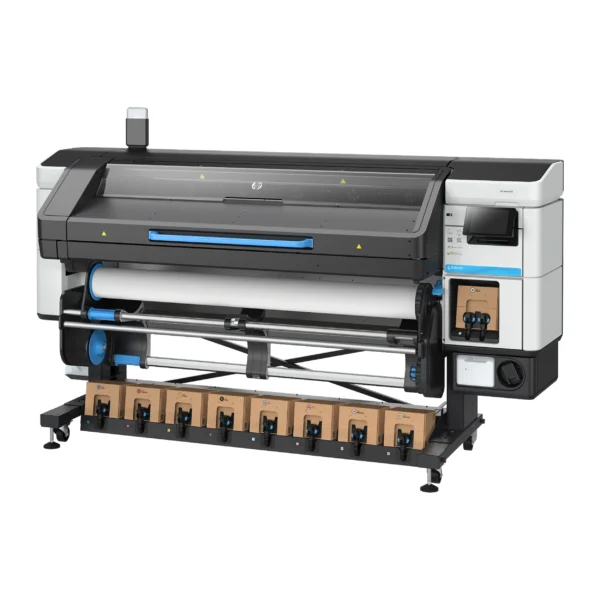

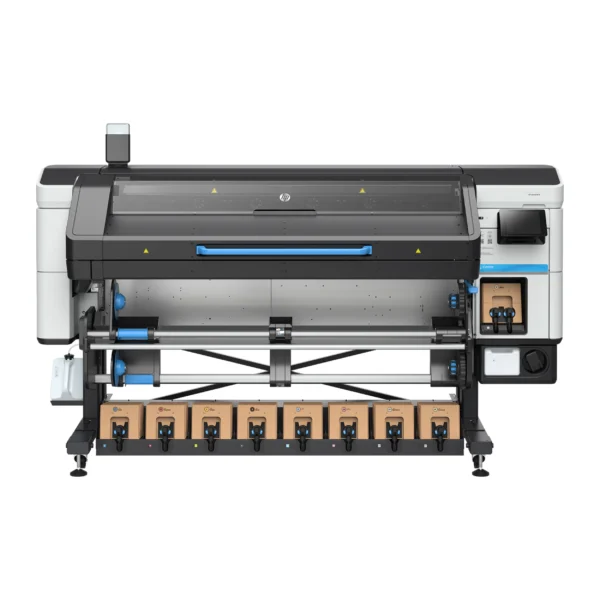

HP Latex 830W
64-Inch High-Volume Production Wide Format Printer | White Ink | 3-Litre Inks | HP Pixel Control | Embedded Spectrophotometer
OVERVIEW
The HP Latex 830W Printer is HP’s ultimate 64-inch wide format production printer — combining every capability of the HP Latex 830 with the most advanced white ink system in the HP Latex range. It is designed for high-volume print service providers and sign shops that demand the highest throughput, the lowest running costs, profitable white ink applications, and industry-leading environmental credentials. With HP 873 3-litre ink cartridges changeable while printing, 5 white print modes at up to 260% density, 30% faster white printing vs. HP Latex 700/800 series, production speeds up to 36 m²/hour, and EPEAT Climate+ registration, the HP Latex 830W is the most capable, most productive, and most versatile printer in the HP Latex lineup.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex 830W?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies with HP Pixel Control |
| Ink Types | Water-based HP Latex Inks — 9 cartridges (CMYK, LC, LM, White, Optimizer, Overcoat) |
| Cartridge Size | 3 litres per cartridge (HP 873 color) — changeable while printer runs HP 832 White Latex Ink Cartridge |
| Printheads | 10 user-replaceable (7 HP Latex Universal, 1 HP Latex Optimizer, 2 HP Latex White) |
| Color Consistency | HP Pixel Control + HP Embedded Spectrophotometer for on-printer ICC color profiling |
| Color Print Speed | 388 ft²/hr (Draft, 4-pass) 269 ft²/hr (Speed, 6-pass) 215 ft²/hr (Standard, 8-pass) 183 ft²/hr (Quality, 12-pass) 118 ft²/hr (High Quality, 16-pass) |
| White Print Speed | 183 ft²/hr (White Spot, 60w%) 96 ft²/hr (White Overflood, 60w%) 47 ft²/hr (White Underflood, 100w%) 32 ft²/hr (White 3-Layer, 160w%) 16 ft²/hr (White 5-Layer) |
| White Print Modes | 5 modes: Spot · Overflood · Underflood · 3-Layer · 5-Layer Up to 260% white ink density |
| White Ink Advantage | 30% faster in underflood, 3-layer and 5-layer modes vs. HP Latex 700/800 series (new drying system) |
| Production Speed | Up to 36 m²/hour |
| Max Media Width | 64 inches |
| Roll Width | 16.5–64 inches (23–64 inches with full support) |
| Max Roll Weight | 121 lb |
| Max Roll Diameter | 9.8 inches |
| Max Media Thickness | Up to 19.7 mil |
| Media Types | Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles |
| Media Handling | Roll feed, take-up reel, wiper roller, media saver, automatic horizontal cutter |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Dimensions (W×D×H) | 101.7 × 34.1 × 55.2 in Operating area: 110 × 82.7 in |
| Printer Weight | 661 lb Shipping: 965.62 lb |
| Operating Conditions | 59–86°F 20–80% RH (non-condensing) |
| Power Consumption | 1.5–2.5 kW (5 kW peak) printing 95 W ready <0.25 W off |
| Acoustics | 60 dB(A) operating 38 dB(A) idle <20 dB(A) sleep |
| Warranty | One-year limited hardware warranty |
Description
Best-in-Class White Ink — Maximum Productivity
- 5 white print modes: Spot (60w%), Overflood (60w%), Underflood (100w%), 3-Layer (160w%), 5-Layer — up to 260% white ink density
- 30% faster white printing in underflood, 3-layer and 5-layer modes vs. HP Latex 700/800 series (new enhanced drying system, tested January 2025)
- HP 832/873 White Latex Ink Cartridges — compatible with the automatic recirculation system between HP 832 Ink Mix and White Cartridge
- 2 dedicated HP 836 White Latex Printheads stored in offline rotation chamber when not printing — zero waste, zero clogging
- Dry bag included for white ink purge management — unique to the 830W in-box contents
Enhanced Production — Optimise Productivity and Cost
- HP 873 3-litre ink cartridges — triple the ink volume, change while the printer keeps running — zero mid-job downtime
- Dramatically reduced cost per m² on long runs — fewer changeovers, less waste, lower consumable overhead
- Production speeds up to 388 ft²/hr draft (4-pass) and 36 m²/hour — highest throughput in the HP Latex range
- Universal printheads with 50% extended life — one printhead type for all color channels, reduced inventory complexity
- New 50% longer-life maintenance cartridge with ink collection unit — fewer consumable changeovers on long runs
- Spindle-less front-loading and media saver — fast media setup, reduced substrate waste, print from the leading edge
- HP PrintOS Production Hub — end-to-end workflow software for streamlined print production management
- Beacon accessory included — remote LED status tower for at-a-glance printer monitoring across the production floor
Consistent Quality — High-Value Applications
- HP Pixel Control ink mixing and distribution for uniform colors across every job and every long run
- HP Embedded Spectrophotometer — create and verify ICC color profiles on the printer, no external hardware needed
- Automated double-sided printing on PVC-free media for efficient two-sided signage production
- Vivid colors and sharp 4-point text with user-replaceable HP Latex Printheads
Lead the Way — Sustainable Operations
- Only EPEAT Climate+ registered printer in the signage industry — the highest environmental credential available
- Water-based HP Latex Inks — odorless prints certified neutral (hedonic tone) by Odournet per VDI 3882
- UL ECOLOGO® certified HP 832 Latex Inks meet stringent human health & environmental criteria
- HP PrintOS Sustainability Amplifier — track, reduce, and report your environmental footprint
- Returnable supplies via HP Planet Partners including new returnable maintenance cartridge
- ENERGY STAR®, UL GREENGUARD Gold, RoHS, REACH, French VOC A+, Meets AgBB criteria
