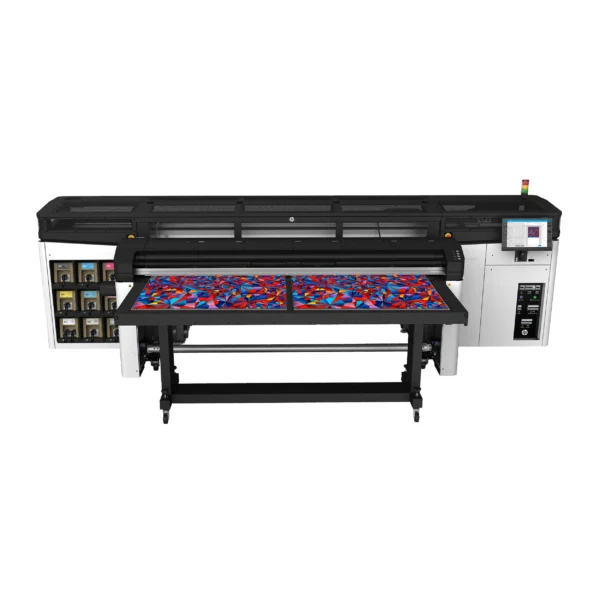

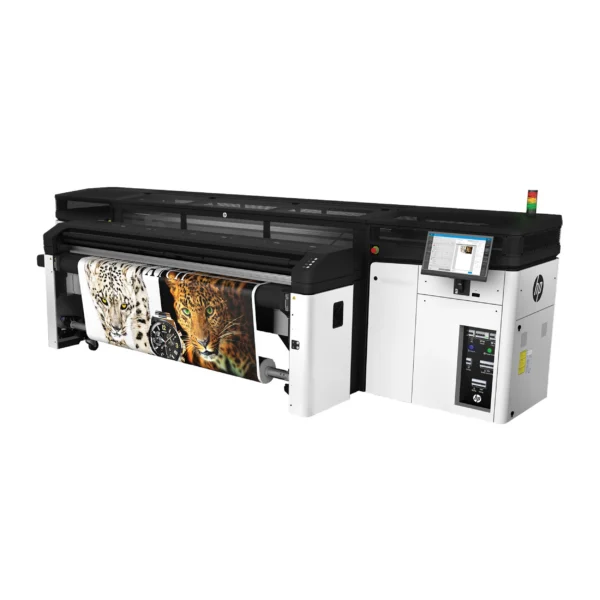

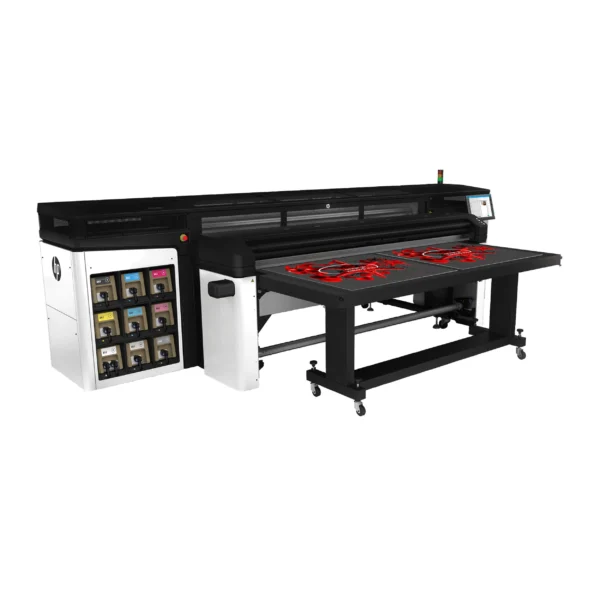

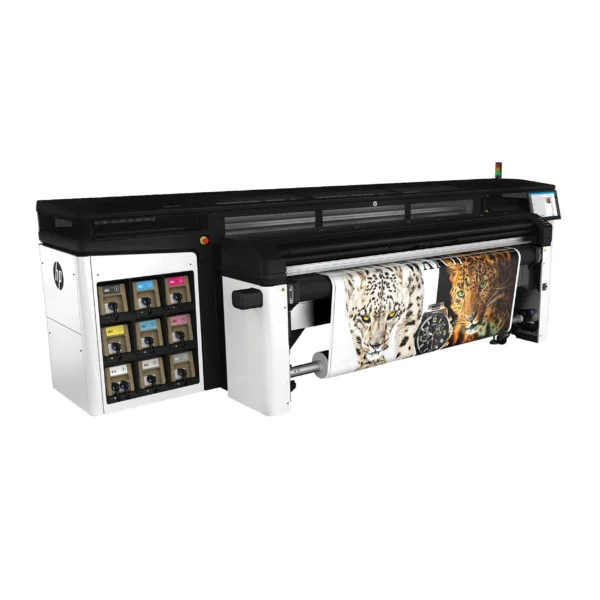

HP Latex R2000 Plus
98-Inch Industrial Hybrid Rigid & Flexible Latex Printer | 5-Litre Inks | Whitest White Ink | 28 Boards/hr | Belt System
OVERVIEW
The HP Latex R2000 Plus Printer is HP’s premier industrial-scale hybrid rigid and flexible wide format printer, delivering unprecedented quality and colors on rigid and flexible substrates up to 98 inches (2.49 m) wide for sustained, high-volume production environments. It handles rigid boards up to 50.8 mm thick and flexible rolls up to 100 kg, printing at up to 28 outdoor boards per hour (4 × 8 ft) at 86 m²/hr, with the whitest white ink in its class that resists yellowing over time. The HP 886 series HP Thermal Inkjet printheads, automatic maintenance systems, and HP Internal Print Server with advanced queuing make the R2000 Plus the standard for industrial-scale latex hybrid production.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex R2000 Plus?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies with HP Thermal Inkjet Printheads |
| Ink Types | Water-based HP Latex Inks — 9 cartridges (CMYK, LC, LM, Optimizer, Overcoat, White) |
| Cartridge Size | 5 litres (colors, Optimizer, Overcoat) 3 litres (White) |
| Printheads | 8 HP 886 (Cyan/Black, Magenta/Yellow, LC/LM, HP Latex Overcoat, 2× Optimizer, 2× White) |
| Color Repeatability | Average ≤ 1.0 dE2000 95% of colors ≤ 2 dE2000 |
| Indoor High Quality | 22 m²/hr (12-pass, 120%) |
| Indoor Production | 43 m²/hr (6-pass, 110%) |
| Outdoor | 86 m²/hr (3-pass, 70%) Up to 28 boards/hr on 4 × 8 ft (1.2 × 2.4 m) boards |
| White Spot | 36 m²/hr (100%) |
| White Overflood/Underflood | 16 m²/hr (100%) |
| White 3-Layer Day & Night | 5.2 m²/hr |
| Printing Modes | Flatbed (rigid) · Sheet feed · Roll-to-roll (flexible) |
| Media Drive | Belt system with smart vacuum for accurate rigid and flexible media advance |
| Max Print Width | 98 inches (2.49 m) |
| Rigid Media Size | 297 × 420 mm to 2,489 × 1,220 mm Up to 2,489 × 3,050 mm with optional extension tables |
| Max Rigid Thickness | Up to 50.8 mm (2 inches) |
| Roll Width | 60.9 cm to 2.49 m Max roll weight: 100 kg Max roll diameter: 25 cm |
| Rigid Media Types | Paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminium composite panel, wood, glass, ceramic |
| Flexible Media Types | PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non-porous), canvas, leather |
| Connectivity | Gigabit Ethernet (1000Base-T) HP Internal Print Server with dual displays |
| Dimensions (W×D×H) | 5.10 × 2.04 × 1.75 m (printer) 5.10 × 3.64 × 1.75 m (with standard tables) |
| Operating Area | 8.7 × 7.23 × 3 m |
| Printer Weight | 1,600 kg Shipping: 2,800 kg |
| Operating Conditions | 15–30°C 20–70% RH (non-condensing) |
| Power Consumption | 10–12 kW (typical) Three-phase power |
| Warranty | 1-Year Limited Warranty — Next Business Day On-Site |
Description
Achieve Stunning colors and Media Look & Feel
- Help increase profitability with higher-value rigid and flexible applications with vibrant HP Latex color gamut
- Gain versatility with HP Latex Ink — from indoor/outdoor signage to thermoforming and high-quality decoration
- Long-term print-to-print repeatability: average ≤ 1.0 dE2000, 95% of colors ≤ 2 dE2000
- Win more jobs with UL ECOLOGO® certified, water-based HP Latex Inks that produce odorless prints
Expand Your Offering with the Whitest White
- Whitest white in class — outperforms HP Scitex FB750/FB550 UV-curable ink technology on rigid acrylic (60° gloss measurement, ISO 2813 / ASTM D523)
- High opacity white that resists yellowing over time — validated by HP WeatherOmeter testing on rigid and flexible unlaminated substrates
- HP 886 HP Thermal Inkjet white printheads stored in offline rotating chamber — zero white ink used for servicing when not printing
- Always ready to print white — automatic recirculation and printhead cleaning eliminate manual purging entirely
- White Spot at 36 m²/hr; White Overflood/Underflood at 16 m²/hr; 3-layer day & night at 5.2 m²/hr
Increase Productivity with Smart Printing
- 28 outdoor boards per hour (4 × 8 ft / 1.2 × 2.4 m) at 86 m²/hr Outdoor (3-pass, 70%) — sustained industrial production
- Belt system with smart vacuum for consistent, accurate media advance on both rigid and flexible substrates
- Multi-board printing — fill the bed with multiple boards and print in a single pass
- Assisted loading system for fast, safe rigid board loading
- Advanced queuing with HP Internal Print Server and dual displays — plan and manage production from the machine
- Maximise uptime with automatic maintenance systems and smart service tools for fast remote diagnosis and issue resolution
- HP PrintOS software tools for production control, cost management, and HP Latex Knowledge Center integration
Sustainable & Safe for Indoor Environments
- No hazard warning labels — no HAPs (Hazardous Air Pollutants) per EPA Method 311
- Water-based HP Latex Inks produce odorless prints
- UL ECOLOGO® and UL GREENGUARD GOLD certified inks
- CA 65 Prop compliant — meets California’s stringent chemical content requirements
- HP designs end-to-end sustainability into large-format printing
