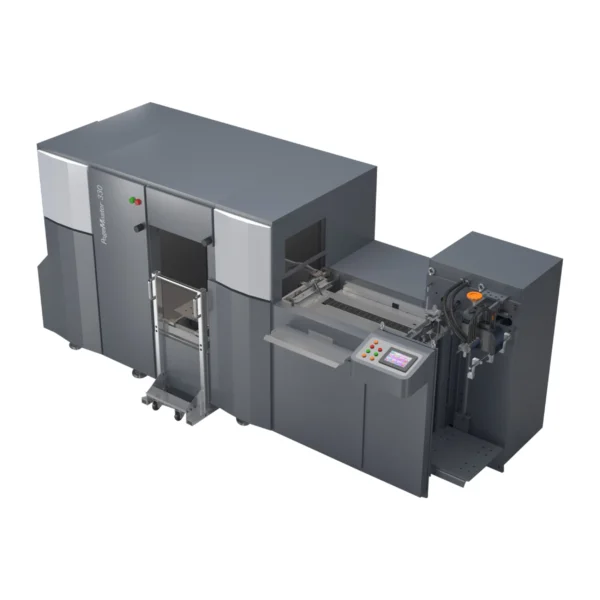

Atexco PageMaster 330 (Color)
High-Speed Color Sheet-Feed Press | CMYK | 400 A4 Pages/Min | Duplex
OVERVIEW
The Atexco PageMaster 330 Color is a high-speed, sheet-fed digital inkjet press purpose-engineered for commercial book printing, direct mail, and short-run document production. Unlike roll-fed presses that require an unwinder and cutter, the PageMaster 330 accepts pre-cut sheets directly — making it the most operationally simple path to 400 A4 pages per minute in full CMYK color. With dual-printhead duplex printing in a single pass, 1600 dpi resolution, 2.1 pl precision ink droplets, and a 7,000-sheet auto dual stacker with offset separator, the PageMaster 330 Color is a compact, production-ready color press with an exceptionally low footprint and power requirement.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Atexco PageMaster 330 (Color)?
| Color Configuration | CMYK (4-color) |
| Print Technology | Piezoelectric Inkjet |
| Ink Type | Water-Based Pigment Ink |
| Ink Drop Size | 2.1 pl |
| Resolution | 1600 dpi |
| Printhead Configuration | 2 Printheads — Duplex (simultaneous both sides) |
| Print Speed — A4 | 400 A4 pages/min |
| Print Speed — A3 | 200 A3 pages/min |
| Paper Size (Feed) | 145 × 210 mm to 330 × 750 mm |
| Printing Width | 324 mm |
| Paper Type | Offset paper, newsprint, carbonless (carbon-free) paper |
| Paper Weight | 60 gsm – 200 gsm |
| Feeder | Double tray feeder — 4,000 sheets × 2 trays (8,000 sheets total) |
| Stacker | Dual take-up system — 7,000 sheets with offset separator |
| Operating Temperature | 20°C – 30°C |
| Operating Humidity | 55% – 70% |
| Noise Level | < 60 dB |
| Operating System | Windows 11 |
| Power Supply | 220V, 4.6 kW |
| Net Weight | 1,300 kg |
| Dimensions (W × H × L) | 2,800 × 1,450 × 850 mm |
Description
Sheet-Feed Architecture — No Unwinder Required
- The PageMaster 330 operates on pre-cut sheets rather than rolls — eliminating the unwinder, cutter, and stacker infrastructure required by roll-fed presses. This means faster job changeovers, simpler operation, and a significantly smaller footprint (2,800 × 1,450 × 850 mm) — ideal for print bureaus and book printers with limited floor space.
400 A4 Pages/Min | 200 A3 Pages/Min — Duplex in One Pass
- Two printheads deliver duplex (double-sided) printing in a single pass at 400 A4 pages per minute or 200 A3 pages per minute. Both sides are printed simultaneously — no second pass, no paper turning, no additional handling time between front and back.
1600 dpi | 2.1 pl — Sharp Text, Fine Detail
- At 1600 dpi resolution with a minimum 2.1 pl ink droplet size, the PageMaster 330 delivers crisp text reproduction and fine line detail — the defining quality requirement for book body pages, financial documents, and data-dense printed materials.
Water-Based Pigment Ink — Low Cost, Low Odour
- Water-based pigment ink delivers vibrant, durable CMYK color output at a lower cost per page than toner-based alternatives, with no VOC concerns for enclosed print environments. Compatible with offset paper, newsprint, and carbonless copy paper.
8,000-Sheet Input | 7,000-Sheet Auto Dual Stacker
- The double tray feeder holds 4,000 sheets × 2 trays (8,000 sheets total input), while the dual take-up system stacks 7,000 sheets with an offset separator for automatic job separation — minimising operator intervention during long production runs.
4.6 kW | 220V — Office-Grade Power
- At just 4.6 kW on a standard 220V supply, the PageMaster 330 operates on the same electrical infrastructure as office equipment — no 380V three-phase power required. This dramatically reduces installation complexity and cost compared to industrial roll-fed alternatives.
