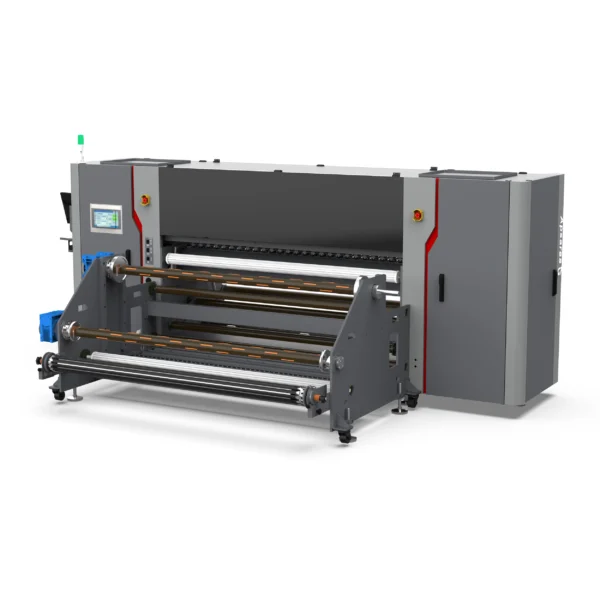

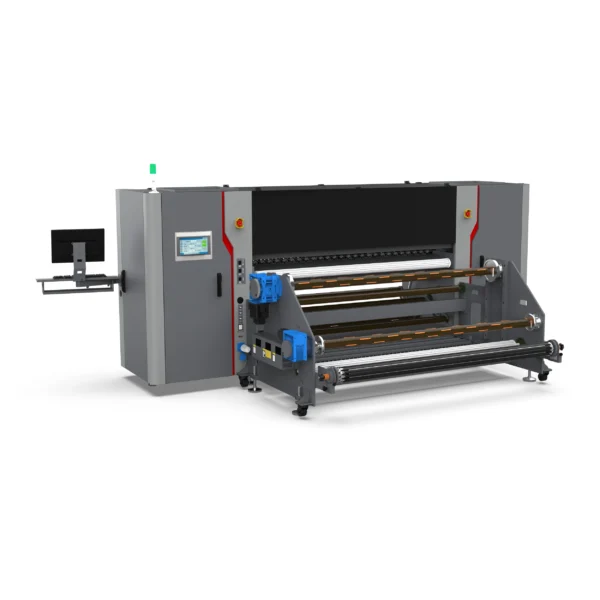

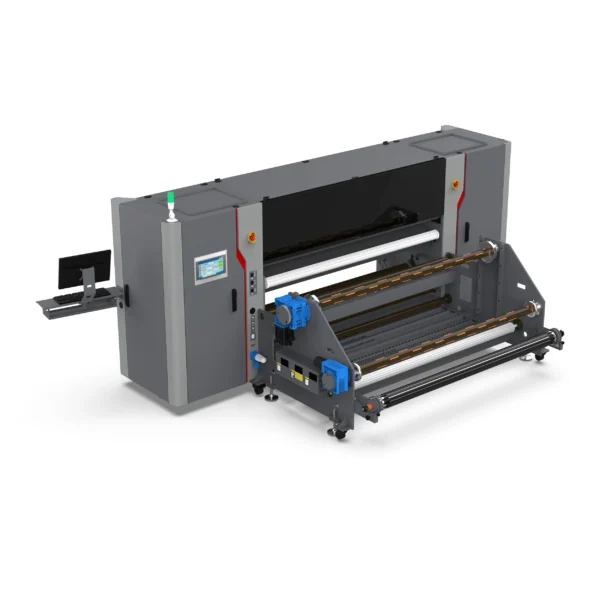

Gongzheng Apsaras G7
High-Speed Industrial Sublimation Solution | 16× Epson I3200 A1 | 663 m²/hr | Magnetic Linear Motor | 3× IR Dryers | 15L Ink | Myriameter Feeder | 1.9m Width
OVERVIEW
The GongZheng Apsaras G7 is a high-speed industrial sublimation transfer printer in a category of its own — 16× Epson I3200 A1 printheads at 1.9 m width, delivering 663 m²/hr in draft mode and 520 m²/hr in production mode. A Magnetic Linear Motor drive system (Igus brand chain with built-in magnetic linear motor and metal encoder) replaces the conventional belt-and-carriage architecture of all other Apsaras models, enabling low-noise, precise, high-speed carriage motion sustained over industrial production shifts. Three IR dryers, 15-litre ink tanks, and a Myriameter feeder with 13,000 m feed capacity (rolls up to 1,000 mm diameter) make the G7 the production workhorse of the Apsaras range.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Gongzheng Apsaras G7?
| Model | Apsaras G7 |
| Print Heads | 16 × Epson I3200 A1 — staggered configuration |
| Motion System | Magnetic Linear Motor — Igus brand chain + magnetic linear motor + metal encoder |
| Ink Type | GS High Density Sublimation Transfer Ink — OEKO-TEX® ECO PASSPORT certified |
| Color Configuration | Y.M.K.C. (standard) Optional 8-color: K.C.Y.M. + S1.S2.S3.S4 |
| Ink Supply System | 15-Litre Large Capacity Ink Supply — largest in the Apsaras range |
| Printing Width | Up to 1,950 mm (1.9 m) |
| Media Type | Transfer Paper (31 to 100 gsm) — broadest range in the Apsaras series |
| Print Speed — Draft | 720 × 600 dpi 663 m²/hr |
| Print Speed — Production | 720 × 600 dpi 520 m²/hr |
| Print Speed — High-Res | 720 × 1200 dpi 359 m²/hr |
| Print Speed — Photo | 720 × 1200 dpi 265 m²/hr |
| Drying System | 3 × IR Dryers |
| Feeder — Myriameter | Feeding: 13,000 m Taking up: 3,000 m Feed roll Ø up to 1,000 mm Take-up roll Ø up to 400 mm |
| Feeder — Kilometer | Feeding: 3,000 m Taking up: 1,500 m Feed roll Ø up to 400 mm (standard) |
| Data Interface | External: USB 3.0 Internal: Fiber Optical |
| Software | neoStampa Delta / Ergosoft + GZ Printer Manager |
| Working Environment | Temperature: 18°C–30°C Humidity: 35%–65% |
| Power | Single Phase, 50Hz/AC, 220V±10%, 25A (Printer) + 3×27A (IR Dryers) |
| Printer Packed Size | 4340 × 1150 × 2040 mm Net weight: 1,328 kg GW: 1,652 kg |
| Printer Installed Size | 4071 × 912 × 1720 mm |
| Myriameter Feeder | Packed: 2790 × 1400 × 1340 mm Installed: 2592 × 1481 × 1078 mm Net: 628 kg GW: 856 kg |
| Kilometer Feeder | Packed: 2680 × 970 × 1280 mm Installed: 2439 × 961 × 947 mm Net: 336 kg GW: 504 kg |
| Total System Weight | Printer + Myriameter: ~1,956 kg net Printer + Kilometer: ~1,664 kg net |
Description
High-Standard Motion System — Magnetic Linear Motor
- Igus brand chain supported by tow chain bracket — coordinated with built-in magnetic linear motor and metal encoder system
- Ensures low noise, precise and high-speed printing — critical for 663 m²/hr sustained industrial operation
- Fundamentally superior to belt-and-carriage: magnetic linear motor eliminates belt wear, backlash, and vibration at high speed
- Metal encoder provides real-time position feedback for precise dot placement across 1.9 m width at full production speed
- Unique designed mounting plate for quick setup and calibration of all 16 printheads
Print Quality — 16-Head Industrial Scale
- 16× staggered Epson I3200 A1 printheads — 16,000+ effective nozzles per color at 1.9 m width
- 663 m²/hr Draft (720 × 600 dpi) | 520 m²/hr Production (720 × 600 dpi) | 359 m²/hr High-Res (720 × 1200 dpi) | 265 m²/hr Photo (720 × 1200 dpi)
- GZ Variable Dot Technology — flawless skin tones, smoother gradients, crisp text and intricate detail at full 663 m²/hr speed
- Y.M.K.C. color order configuration — optimised for the G7’s ink system and head architecture
- Optional 8-color configuration: K.C.Y.M. + S1.S2.S3.S4 for extended gamut and spot color accuracy
- Self-developed Auto Capping Station with slant-wiper — saves maintenance time and maximally extends printhead life on 16-head systems
- Software: neoStampa Delta / Ergosoft + GZ Printer Manager
Industrial Media System — Myriameter & Kilometer
- Two feeder configurations: Myriameter (Feeding 13,000 m / Take-up 3,000 m) and Kilometer (Feeding 3,000 m / Take-up 1,500 m)
- Myriameter feeding rolls up to 1,000 mm diameter — the largest roll capacity in the entire Apsaras range
- Kilometer take-up rolls up to 400 mm diameter
- Transfer paper: 31 to 100 gsm — broadest paper weight range across all Apsaras models
- Industrial Media Handle System with unique stretchable rubber bar — assures wrinkle-free take-up, particularly for low-gram and jumbo roll paper
- Grooving Anti-Wrinkle Platen — pressure-adjustable pinch rollers with post-spreading roller for wrinkle-free feeding
- Intelligent Touch Control Panel — front and rear access for unibody movement, head cleaning and material stepping
Ink System & Drying — Maximum Throughput
- 15-litre large capacity ink supply per channel — the largest in the Apsaras range, dramatically fewer changeovers
- 3× IR Dryers for complete ink curing at 663 m²/hr — triple the drying capacity of G4/G4L single-dryer systems
- Power: 25A (Printer) + 3×27A (IR Dryers) — reflecting the scale of industrial drying required at 16-head production speeds
- Data interface: External USB 3.0 + Internal Fiber Optical — fast data transfer for 16-head production file sizes
- OEKO-TEX® ECO PASSPORT certified GS High Density Sublimation Transfer Ink
