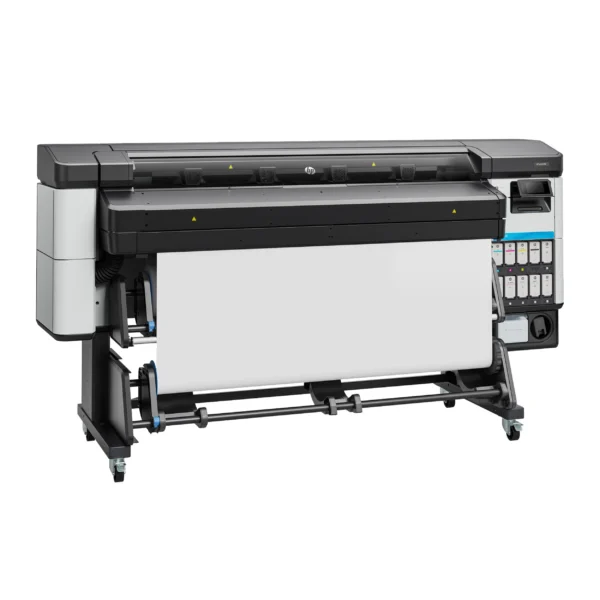

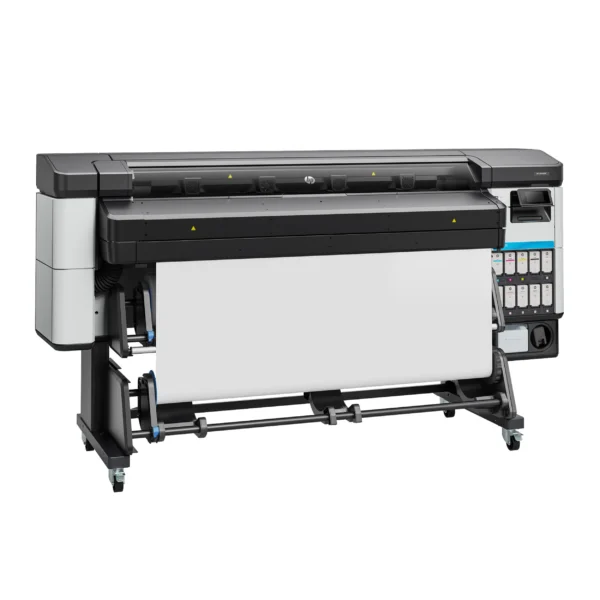

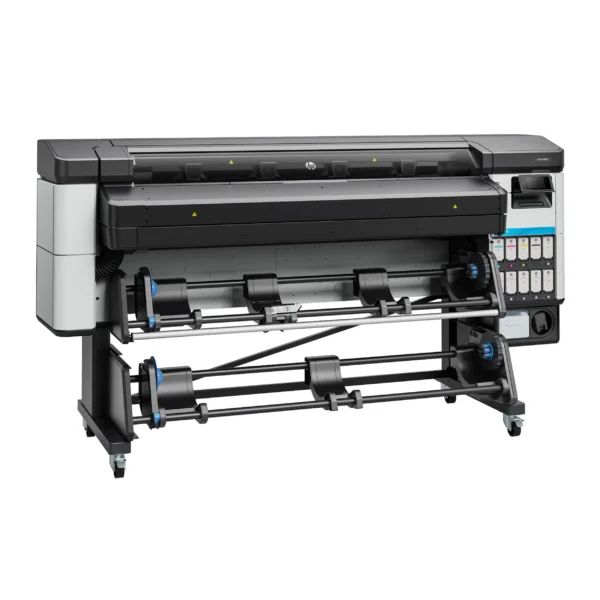

HP Latex 630W
64-Inch Wide Format Inkjet | Water-Based Latex Inks + White Ink | Indoor & Outdoor Signage
OVERVIEW
The HP Latex 630 W Printer is a professional-grade 64-inch wide format printer that combines all the capabilities of the HP Latex 630 with an integrated white ink system. Designed for sign shops, print service providers, and visual communication businesses, it unlocks a new world of applications – from opaque prints on dark and transparent substrates to striking backlit graphics with white underlays. Powered by HP’s water-based Latex ink technology, it delivers vivid, fade-resistant prints with prints that emerge dry and ready for immediate finishing.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex 630W?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies |
| Ink Types | Water-based HP Latex Inks (6 colours + White + Optimizer + Overcoat) |
| Printheads | 6 user-replaceable HP 836 printheads (incl. 1 White, 1 Optimizer) |
| Colour Repeatability | 95% of colours < 3 dE2000 |
| Print Speed | 377 ft²/hr (Max, 2-pass) 151 ft²/hr (Standard, 6-pass) 64 ft²/hr (White Spot) 17 ft²/hr (White Underflood) |
| White Print Modes | White Spot (100%) · White Overflood (100%) · White Underflood (100%) · 3-Layer (160%) — up to 260% white density |
| Roll Width | 18–64 inches (full support 23–64 inches) |
| Max Roll Diameter | 9.8 inches |
| Media Handling | Roll feed, take-up reel, automatic horizontal cutter |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Dimensions (W×D×H) | 102.5 × 33.2 × 55.3 in Weight: 520 lb |
| Operating Conditions | 59–86°F 20–80% RH (non-condensing) |
| Power Consumption | 1.4–2.1 kW printing 85 W ready 0.25 W off |
| Acoustics | 55 dB(A) operating 38 dB(A) idle |
| Warranty | One-year limited hardware warranty |
Description
Best White Ink Print Experience
- Easiest white ink management — Automatic Ink Recirculation System keeps white ink in constant motion
- 4 white print modes: Spot (100%), Overflood (100%), Underflood (100%), 3-Layer (160%) — up to 260% density
- Offline rotation chamber stores white printhead safely when not printing — zero waste, zero clogging
- White print modes available at multiple opacity levels for fine control over transparency and coverage
Exceptional Print Quality
- Up to 1200 × 1200 dpi resolution — razor-sharp text and smooth colour gradients
- Standard speed of 151 ft²/hr (6-pass) delivering consistent, production-ready output
- 95% of colours achieve < 3 dE2000 long-term print-to-print repeatability
- 6-colour + white ink system: CMYK, LC, LM, White + Optimizer + Overcoat
Wide Application Range
- Opaque prints on dark, black, and transparent substrates — unlocked by white ink
- Backlit displays with white underflood for maximum light diffusion and colour vibrancy
- Banners, vehicle wraps, floor graphics, wall décor, window graphics, light boxes
- Supports thin films, papers, canvas, and a broad range of alternative substrates
- Compatible with rolls from 18 to 64 inches (full support from 23 to 64 inches)
Environmentally Responsible Printing
- Water-based HP Latex Inks — no harsh solvents, odorless prints certified by VDI 3882
- UL ECOLOGO® certified HP 832 Latex Inks — meets stringent human health & environmental criteria
- EPEAT registered, ENERGY STAR®, UL GREENGUARD Gold certified
- Cardboard-based ink cartridges reduce plastic by 33 tonnes annually vs. plastic cartridges
- Free ink cartridge recycling through HP Planet Partners programme
Effortless Workflow & Reliability
- Automatic maintenance processes minimise downtime and operator intervention
- User-replaceable printheads — no technician required for routine head changes
- Fast automated front-loading system saves setup time
- 10 GB onboard job storage for easy reprints without resending files
- Cloud-based HP PrintOS (PrintBeat, Configuration Center, HP Learn) for remote monitoring
- Automatic horizontal cutter for vinyl, banner, canvas, and paper-based media
