HP Latex R530
64-Inch Hybrid Rigid & Flexible Latex Printer | Flatbed + Roll-to-Roll | White Ink | 3-Litre HP 875 Inks | HP High Control Belt System
OVERVIEW
The HP Latex R530 Printer is a hybrid wide format printer — the only compact all-in-one rigid and flexible HP Latex printer in the market. It allows print service providers to profitably print directly on rigid substrates (up to 2 inches thick, boards up to 150 lb) using the proprietary HP High Control Belt System for accurate flatbed printing, while supporting full roll-to-roll flexible printing without tradeoffs. It operates on single-phase power, requires less operational space than any conventional 4 × 8 ft flatbed printer, and includes 6-mode white ink printing with automatic recirculation and printhead cleaning across both rigid and flexible applications.
For businesses using Print & Mount, the R530 enables direct rigid printing — saving ~250 m² of self-adhesive vinyl per month while keeping fibre-based media recyclable.
For businesses using Print & Mount, the R530 enables direct rigid printing — saving ~250 m² of self-adhesive vinyl per month while keeping fibre-based media recyclable.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex R530?
| Print Resolution | Up to 1200 × 600 dpi |
| Technology | HP Latex Printing Technologies with HP Pixel Control |
| Ink Types | Water-based HP Latex Inks — 9 HP 875 cartridges (CMYK, LC, LM, White, Optimizer, Overcoat) |
| Cartridge Size | 3 litres per cartridge (HP 875) |
| Printheads | 10 HP 837 printheads (2 Cyan/Black, 2 Magenta/Yellow, 2 LC/LM, 2 White, 1 Optimizer, 1 Overcoat) |
| Printing Modes | Flatbed (rigid) · Sheet feed · Roll-to-roll (flexible) — all in one machine |
| Media Drive | HP High Control Belt System — vacuum belt for accurate rigid media advance |
| Color Print Speed | 334 ft²/h (Draft, 4-pass) 258 ft²/h (Fast, 6-pass) 167 ft²/h (Standard, 12-pass) 124 ft²/h (Quality, 16-pass) |
| White Print Speed | 99 ft²/h (Spot) 67 ft²/h (Overflood) 45 ft²/h (Underflood 100%) 33 ft²/h (Underflood 160%) 22 ft²/h (3-Layer) 14 ft²/h (5-Layer) |
| White Print Modes | 6 modes: Spot · Overflood · Underflood 100% · Underflood 160% · 3-Layer · 5-Layer Up to 260% white density |
| Max Media Width | 64 inches |

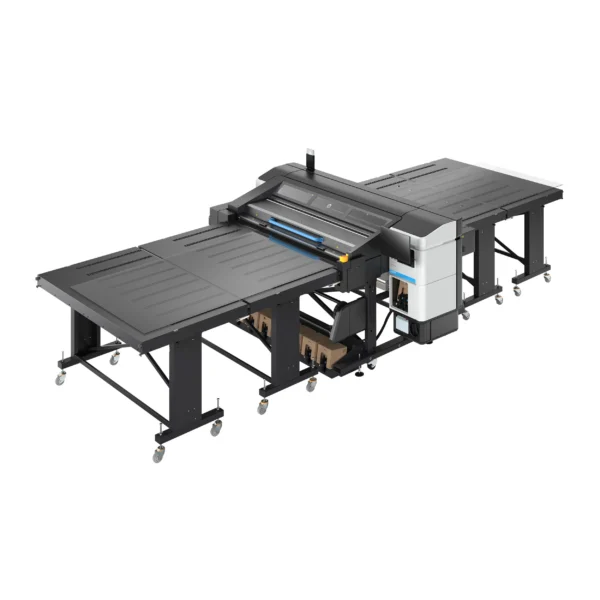

| Sheet Size | 11.7 × 16.5 in to 63.6 × 60 in Up to 63.6 × 236 in with optional extension tables |
| Max Rigid Thickness | Up to 2 inches |
| Max Board Weight | Up to 150 lb |
| Roll Width | 18–64 in Max roll weight: 121 lb Max roll diameter: 9.8 in |
| Rigid Media Types | Paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminium composite panel, wood, glass, ceramic |
| Flexible Media Types | PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non-porous), canvas, leather |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Dimensions (W×D×H) | 103.5 × 68.1 × 60.9 in (without tables) 103.5 × 126 × 60.9 in (with tables) |
| Operating Area | Rigid: 185 × 170.5 in Flexible only: 148 × 170.5 in |
| Printer Weight | 1,455 lb (without tables) Shipping: 2,769 lb |
| Operating Conditions | 59–86°F 20–80% RH (non-condensing) |
| Power Consumption | 2.5–4 kW (5 kW peak) printing 130 W ready Single-phase |
| Power Requirements | 200–240 V (±10%), 50/60 Hz, two power cords, 16 A max per cord |
| Acoustics | 65 dB(A) operating |
| Recycled Content | At least 25% recycled plastic by total weight |
| Warranty | One-year limited hardware warranty |
Description
All-in-One — Rigid and Flexible Printing
- Only compact all-in-one rigid and flexible HP Latex printer — smaller operational footprint than any conventional 4 × 8 ft flatbed
- HP High Control Belt System — vacuum belt drive for accurate, consistent rigid flatbed printing without distortion or media movement
- Rigid media: paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminium composite panel, wood, glass, ceramic

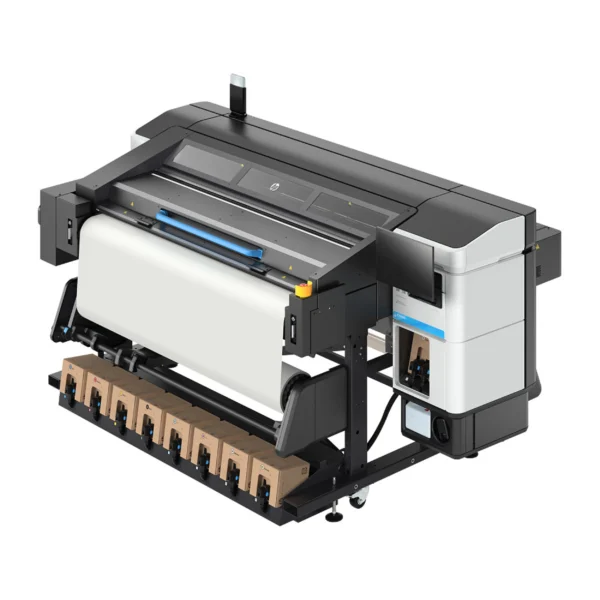

- Flexible roll-to-roll: PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non-porous), canvas, leather
- Sheet size 11.7 × 16.5 in to 63.6 × 60 in — up to 63.6 × 236 in with optional extension tables
- Board weight up to 150 lb; media thickness up to 2 inches
- Single-phase power — no special electrical installation required; fits standard commercial premises
- HP PrintOS Production Hub for remote production control and streamlined end-to-end workflow management
White Ink — 6 Modes on Rigid & Flexible
- 6 white print modes: Spot (100%), Overflood (100%), Underflood (100%), Underflood (160%), 3-Layer, 5-Layer — up to 260% white ink density
- White print speeds: 99 ft²/h Spot · 67 ft²/h Overflood · 45 ft²/h Underflood 100% · 33 ft²/h Underflood 160% · 22 ft²/h 3-Layer · 14 ft²/h 5-Layer
- Automatic white ink recirculation system — prevents pigment settling on both rigid and flexible applications
- Automatic printhead cleaning for HP 837 White Printheads — consistent opacity run after run
- 2 dedicated HP 837 White Latex Printheads (9D7Q3A) — user-replaceable
Versatile — Consistent Quality Across All Media
- HP Pixel Control ink mixing for solid colors, elevated gradients, and wide color gamut on all substrates
- Maintains the look and feel of substrates — direct printing without altering surface characteristics
- 10 printheads: 2 Cyan/Black, 2 Magenta/Yellow, 2 Light Cyan/Light Magenta, 2 White, 1 Optimizer, 1 Overcoat
- Applications: indoor/outdoor signage, backlit, thermoformed, wall coverings, vehicle wraps, soft signage, POS/packaging, corrugated displays, short-run customised packaging, prototyping
Sustainable — Lead with Certified HP Latex Inks
- Eliminates Print & Mount — saves ~250 m² of self-adhesive vinyl per month, reducing material use and disposal
- Fibre-based boards (paper foamboard, honeycomb board) remain recyclable when printed directly — vinyl-laminated boards are not
- Water-based HP Latex Inks — odorless, characterised as ‘neutral to slightly pleasant’ hedonic tone (Odournet, VDI 3882)
- UL ECOLOGO® certified HP 875 inks meet stringent human health & environmental criteria
- HP Sustainability Amplifier software — self-assessment and recognition for environmental progress
- Printer contains at least 25% recycled plastic by total weight
- Returnable extended-life maintenance cartridge — at least 50% more life vs. HP Latex 700/800 cartridge
- WEEE, RoHS, REACH, OSHA, CE, UL GREENGUARD Gold, French VOC A+, Meets AgBB criteria
