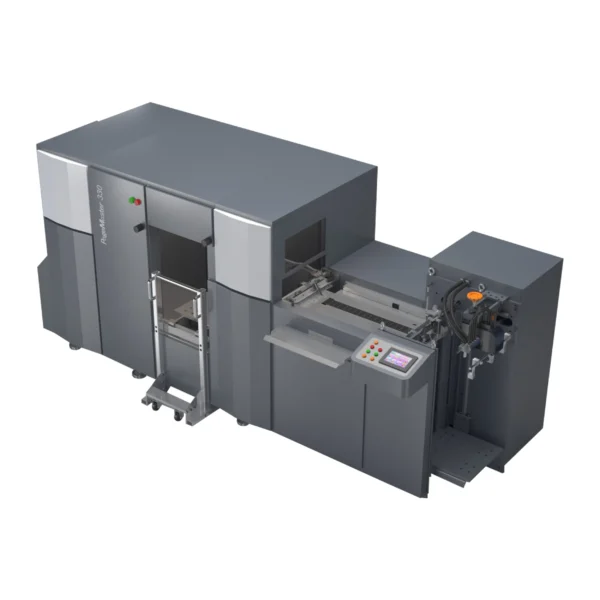

Atexco PageMaster 330 (Mono)
High-Speed Monochrome Sheet-Feed Press | 400 A4 Pages/Min | Duplex | Water-Based Ink
OVERVIEW
The Atexco PageMaster 330 Monochrome is a high-speed, sheet-fed digital inkjet press built for short-run and on-demand monochrome book printing, document production, and high-volume transactional print. Accepting pre-cut sheets directly from a dual 8,000-sheet feeder, it runs at 400 A4 pages per minute with dual-printhead duplex printing in a single pass — delivering industrial throughput at a fraction of the power, footprint, and operational complexity of roll-fed alternatives. At just 4.6 kW on a standard 220V supply and with a 2,800 mm footprint, the PageMaster 330 Mono is the most space- and cost-efficient path to high-volume monochrome production available at this class.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Atexco PageMaster 330 (Mono)?
| Color Configuration | Monochrome (Black) |
| Print Technology | Piezoelectric Inkjet |
| Ink Type | Water-Based Pigment Ink |
| Ink Drop Size | 2.1 pl |
| Resolution | 1600 dpi |
| Printhead Configuration | 2 Printheads — Duplex (simultaneous both sides) |
| Print Speed — A4 | 400 A4 pages/min |
| Print Speed — A3 | 200 A3 pages/min |
| Paper Size (Feed) | 145 × 210 mm to 330 × 750 mm |
| Printing Width | 324 mm |
| Paper Type | Offset paper, newsprint, carbonless (carbon-free) paper |
| Paper Weight | 60 gsm – 200 gsm |
| Feeder | Double tray feeder — 4,000 sheets × 2 trays (8,000 sheets total) |
| Stacker | Dual take-up system — 7,000 sheets with offset separator |
| Operating Temperature | 20°C – 30°C |
| Operating Humidity | 55% – 70% |
| Noise Level | < 60 dB |
| Operating System | Windows 11 |
| Power Supply | 220V, 4.6 kW |
| Net Weight | 1,300 kg |
| Dimensions (W × H × L) | 2,800 × 1,450 × 850 mm |
Description
Sheet-Feed Architecture — No Roll Infrastructure Required
- The PageMaster 330 Mono loads pre-cut sheets from standard paper trays — no unwinder, no web tension management, no cutter, no large roll-feed footprint. Job changeovers are as simple as loading a different paper tray. The 2,800 × 850 mm footprint fits in spaces where a roll-fed press simply cannot.
400 A4 Pages/Min — Duplex in a Single Pass
- Two printheads deliver simultaneous duplex printing at 400 A4 pages per minute or 200 A3 pages per minute — both sides printed in a single pass with no paper handling between front and back. For a 200-page monochrome book block, that is one complete book interior every 30 seconds.
1600 dpi | 2.1 pl — Crisp Monochrome Text
- At 1600 dpi with 2.1 pl ink droplets, the PageMaster 330 Mono delivers sharp, consistent black text and fine line reproduction — the primary quality benchmark for monochrome book body pages, legal documents, and data-dense printed materials.
Lowest Cost-Per-Page Monochrome Production
- Water-based pigment ink delivers the lowest cost-per-page of any inkjet technology for monochrome output. No fuser consumable, no toner cartridge, no drum unit — just high-yield pigment ink at a fraction of the per-page cost of laser alternatives.
8,000-Sheet Input | 7,000-Sheet Auto Dual Stacker
- The double tray feeder holds 4,000 sheets × 2 trays (8,000 sheets total), while the dual take-up system automatically stacks 7,000 sheets with an offset separator for job separation — enabling extended production runs with minimal operator intervention.
4.6 kW | 220V — Standard Office Power
- At just 4.6 kW on a 220V standard supply, the PageMaster 330 Mono requires no industrial power infrastructure — making it installable in print bureaux, publishing offices, government departments, and educational institutions without electrical upgrades.
