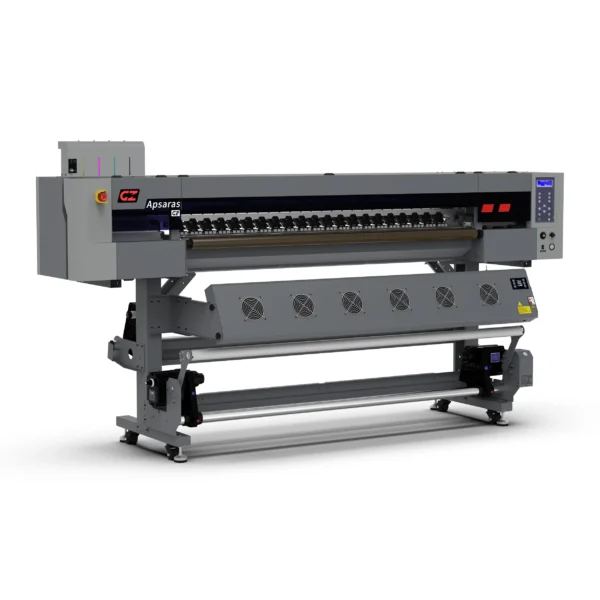

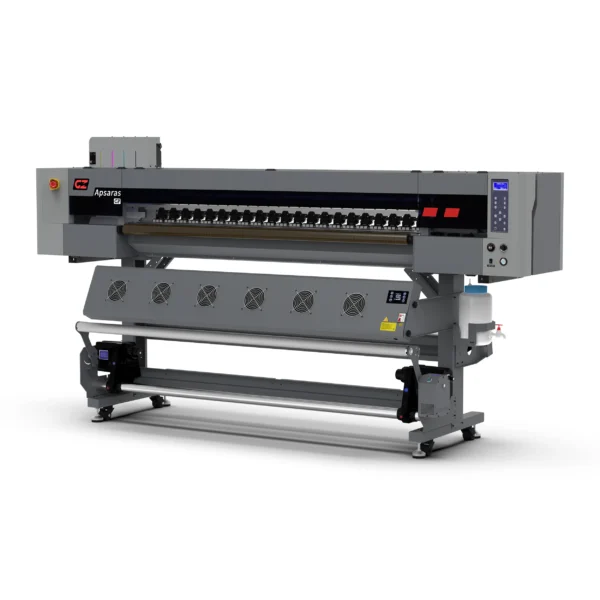

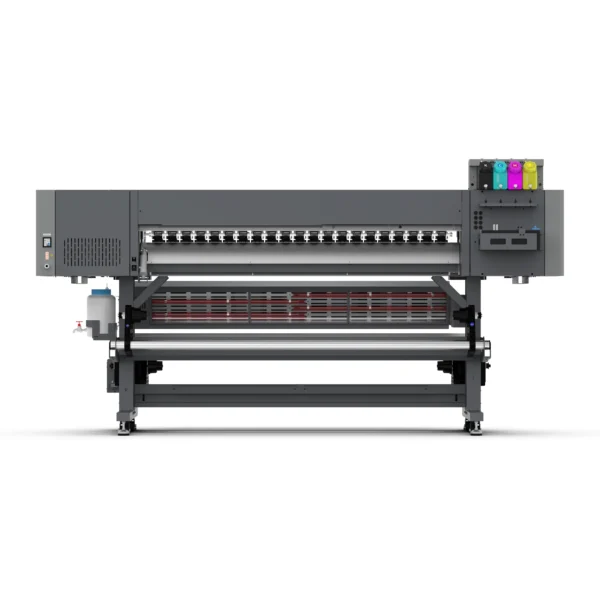

Gongzheng Apsaras G2
Entry-Level 1.6m Dye-Sublimation Printer | 2× Epson I3200 A1 Heads | Up to 95 m²/hr | Sportswear / Fashion / Home Textiles
OVERVIEW
The GongZheng Apsaras G2 is an entry-level 1.6-metre dye-sublimation transfer paper printer designed for sportswear, fashion, and home textile businesses entering or scaling their digital textile printing operation. Powered by 2× staggered Epson I3200 A1 printheads with GZ Variable Dot Technology, it delivers up to 95 m²/hr in Draft mode and sharp, vibrant sublimation transfers across KCMY color configurations. The Intelligent Sectionable Control IR Dryer, Grooving Anti-Wrinkle Platen, and one-button electric driver pinch roller system ensure wrinkle-free, production-quality output on transfer paper — ready for heat press application onto polyester and poly-blend textiles.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Gongzheng Apsaras G2?
| Model | Apsaras G2 |
| Print Heads | 2 × Epson I3200 A1 — staggered configuration |
| Ink Type | GS High Density Sublimation Transfer Ink — OEKO-TEX® ECO PASSPORT certified |
| Color Configuration | K.C.Y.M. (Black, Cyan, Yellow, Magenta) |
| Ink Supply System | 1.5-Litre Bulk Ink Supply System with Ink Cartridges |
| Printing Width | Up to 1,600 mm (1.6 m) |
| Media Type | Transfer Paper |
| Print Speed — Draft | 720 × 600 dpi 95 m²/hr |
| Print Speed — Production | 720 × 600 dpi 85 m²/hr |
| Print Speed — High-Res | 720 × 1200 dpi 47 m²/hr |
| Print Speed — Photo | 720 × 1200 dpi 37 m²/hr |
| Drying System | Intelligent Sectionable Control IR Dryer |
| Feeder | Feeding: 200 m Taking up: 200 m |
| Roll Diameter | Up to 150 mm |
| Data Interface | External: Ethernet Internal: Fiber Optical |
| Software | FlexiPRINT / Ergosoft + GZ Printer Manager |
| Working Environment | Temperature: 18°C–30°C Humidity: 35%–65% |
| Power | Single Phase, 50Hz/AC, 220V±10%, 2A (Printer) + 18A (IR Dryer) |
| Packed Size (L×W×H) | 2900 × 1000 × 730 mm |
| Installed Size (L×W×H) | 2760 × 888 × 1463 mm |
| Gross Weight / Net Weight | 338 kg / 248 kg |
Description
Print Quality — GZ Variable Dot Technology
- 2× staggered Epson I3200 A1 printheads — unparalleled productivity and high print quality for entry-level sublimation
- GZ Variable Dot Technology — flawless skin tones, smoother gradients, crisp text and intricate detail without compromising speed
- KCYM color configuration optimised for sublimation transfer applications
- Up to 720 × 1200 dpi resolution in High-Res and Photo modes for exceptional fine-detail reproduction
- Auto Capping & Wiping System — maintains printhead health, ensures excellent print quality and sustained productivity
- Software compatibility: FlexiPRINT / Ergosoft + GZ Printer Manager for professional color management
Media Handling — Wrinkle-Free Production
- Grooving Anti-Wrinkle Platen — pressure-adjustable pinch rollers with grooving platen and post-spreading roller
- Wrinkle-free media feeding especially when printing on dark colors and high-tension paper
- Unique Pinch Roller System — one-button controlled electric driver pinch roller for convenient operation
- Three-level tension adjustable pinch rolls perfectly match different thickness transfer papers
- Front-position take-up system — space-saving design, easy sample collection for operators
- Feeding: 200 m; Taking up: 200 m — long uninterrupted production runs
- Roll diameter up to 150 mm — accommodates large paper rolls for sustained operation
Drying & Efficiency
- Intelligent Sectionable Control IR Dryer — uniform and efficient drying across the full 1.6 m print width
- Sectionable control allows targeted IR drying zones — reducing energy consumption on narrower media
- Data interface: External Ethernet + Internal Fiber Optical — fast, reliable data transfer for high-resolution files
- Single-phase power — 220V±10%, 2A (Printer) + 18A (IR Dryer) — standard commercial installation
Sustainable & Safe for Textile Supply Chains
- GS High Density Sublimation Transfer Ink certified by OEKO-TEX® with ECO PASSPORT
- OEKO-TEX® ECO PASSPORT ensures inks meet stringent requirements for human health and environmental safety throughout the textile supply chain
- Water-based sublimation inks — no harmful solvents
- Suitable for sportswear, fashion, and home textiles supply chains requiring certified sustainable production
