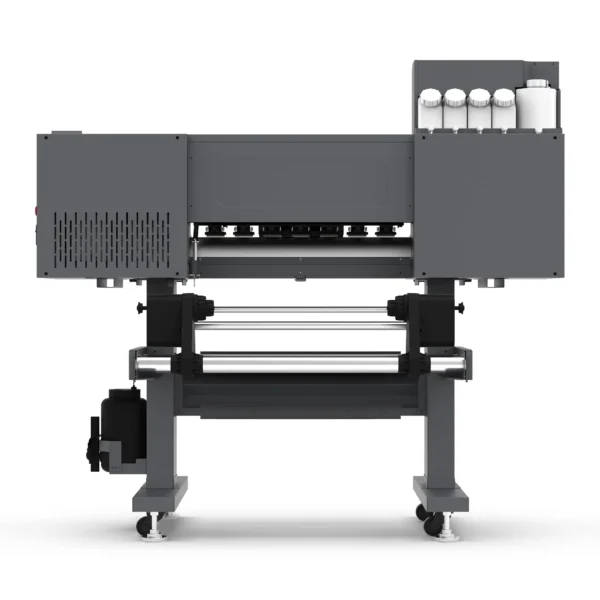

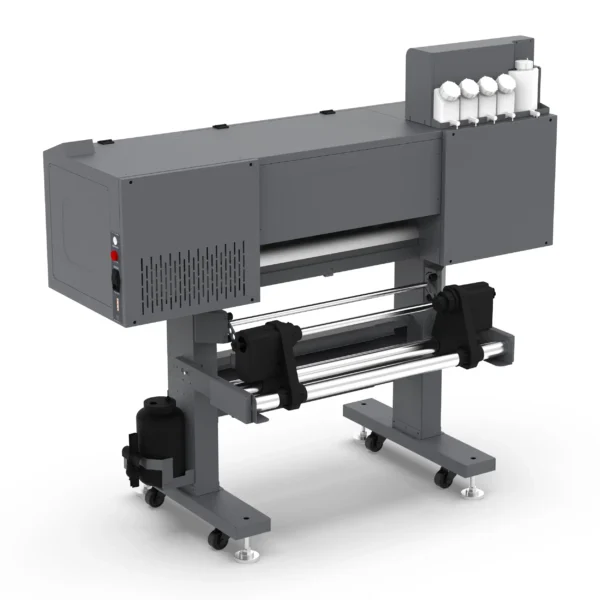

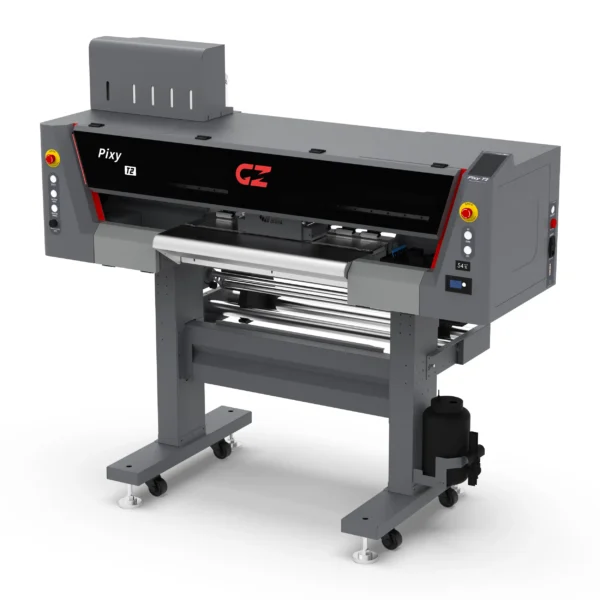

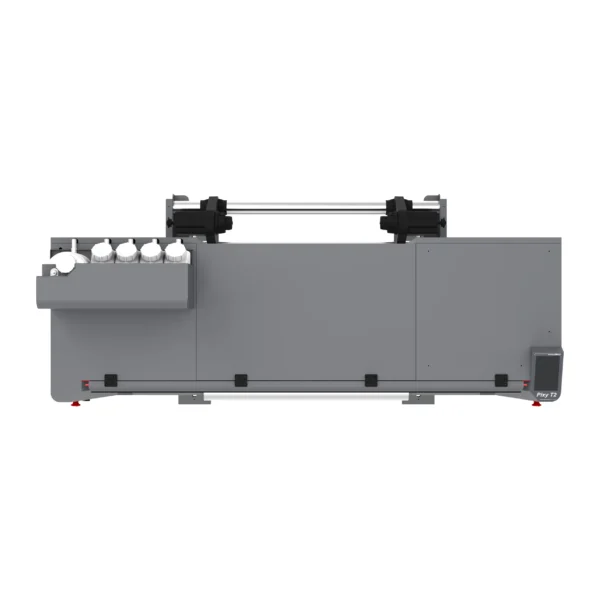

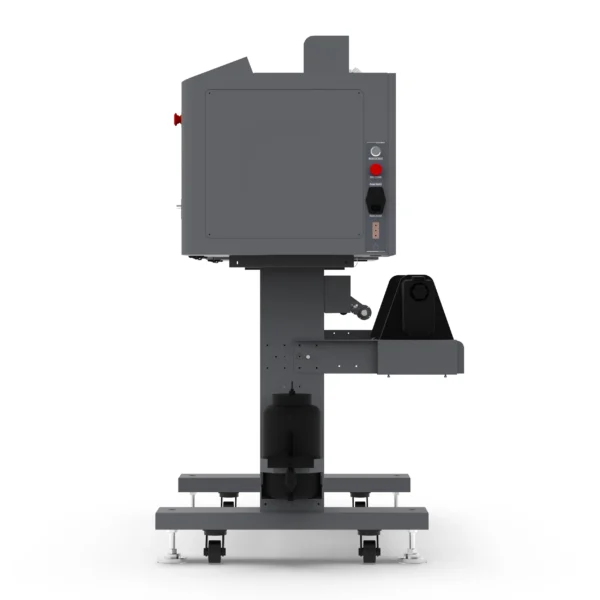

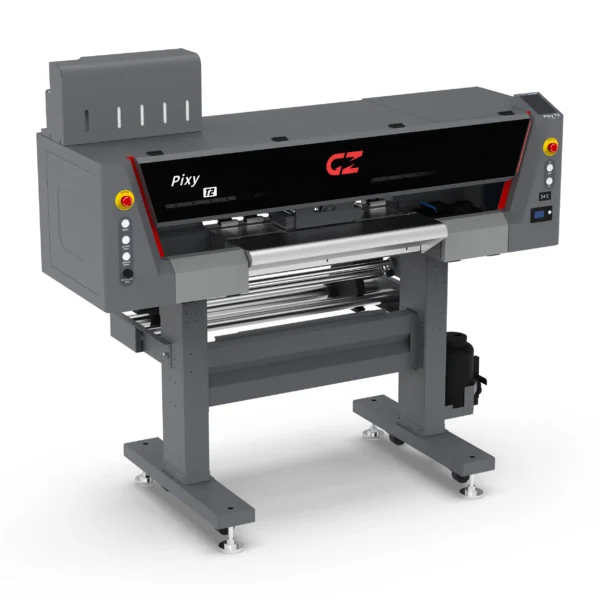

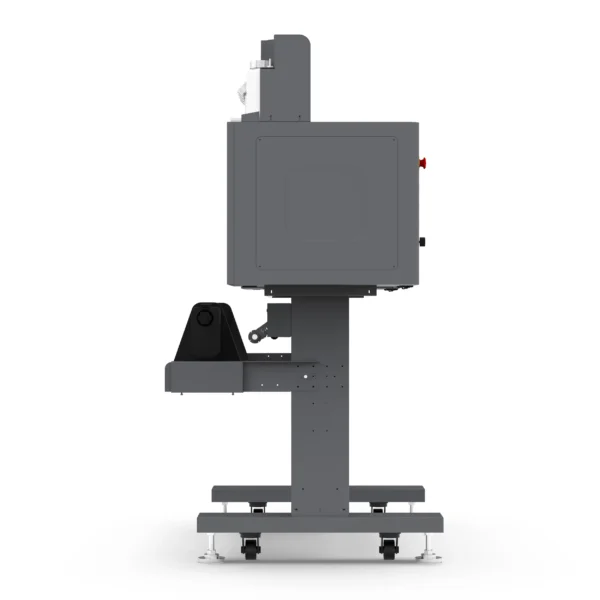

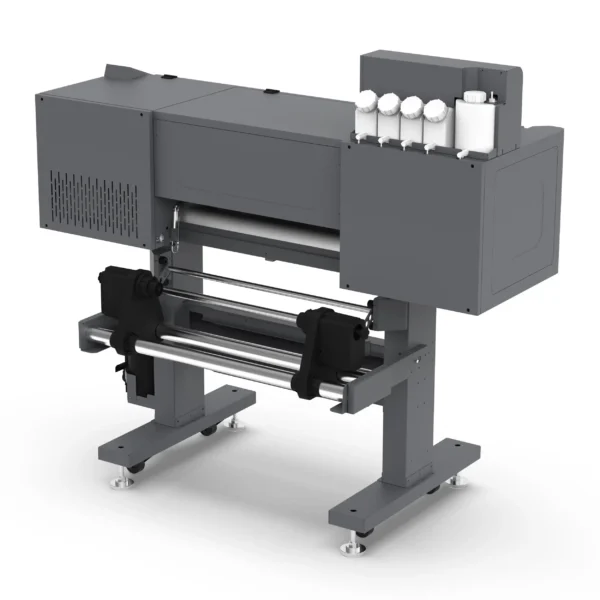

Gongzheng Pixy T2
60cm DTF (Direct-to-Film) Textile Printer | 2× Epson I3200 A1 | White Ink Recirculation | THK Linear Guide | Integrated Shaker & Filter | Prints on Cotton, Polyester & Blends
OVERVIEW
The GongZheng Pixy T2 is a 60 cm (600 mm) Direct-to-Film (DTF) printer — a fundamentally different technology from the Apsaras sublimation range. DTF prints designs onto a special PET transfer film using pigment inks including white, coats the wet print with hot-melt powder in the integrated shaker unit, then cures the powder in the Filter/dryer unit. The finished transfer is then heat-pressed onto virtually any fabric — cotton, polyester, poly-cotton blends, denim, silk, nylon — without pre-treatment. Powered by 2× Epson I3200 A1 printheads with a 1xKCMY+1xW color configuration, the Pixy T2 delivers vibrant, wash-resistant, soft-hand-feel prints on any fabric type at 15 m²/h (4-pass) or 10 m²/h (6-pass).
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Gongzheng Pixy T2?
| Model | Pixy T2 |
| Technology | DTF — Direct-to-Film printing onto PET transfer film |
| Print Heads | 2 × Epson I3200-A1 printheads (natural 600 npi) |
| Ink Type | GS Original Transfer Pigment Ink |
| Color Configuration | 1×KCMY + 1×W (CMYK + dedicated white channel) |
| Ink Supply System | 1.5-Litre Bulk Ink Supply System with White Ink Recirculation System |
| Printing Width | 600 mm (60 cm) |
| Media Type | Transfer Film (PET DTF film) |
| Print Speed — 4-Pass | 720 × 1200 dpi 15 m²/hr |
| Print Speed — 6-Pass | 720 × 1800 dpi 10 m²/hr |
| Motion System | THK linear guide + Igus chain + anti-deformation aluminium beam |
| Data Interface | External: Ethernet Internal: Fiber Optical |
| Software | Onyx DTF + GZ Printer Manager |
| Working Environment | Temperature: 18°C–30°C Humidity: 35%–65% |
| Power | Single Phase, 50Hz/AC, 220V±10%, 2A |
| Packed Size | 2270 × 710 × 750 mm |
| Installed Size | 1655 × 794 × 1508 mm |
| Gross Weight / Net Weight | 248 kg / 178 kg |
Description
DTF Technology — Print on Any Fabric Without Pre-Treatment
- DTF (Direct-to-Film) is a completely different technology from sublimation — it prints on cotton, polyester, denim, silk, nylon, and blends
- No pre-treatment of garments required — unlike DTG (Direct-to-Garment) printing which requires pre-treatment on dark fabrics
- Vibrant colors with excellent opacity on dark and light fabrics — white ink base layer ensures color accuracy on any substrate
- Soft hand-feel after heat press transfer — wash-resistant, durable prints that do not crack or peel
- GS Original Transfer Pigment Ink — purpose-formulated for DTF film printing with excellent adhesion and wash fastness
- 1×KCMY + 1×W color configuration — CMYK for full color, dedicated white channel for opacity on any fabric color
White Ink System — Recirculation & Moisturizing
- White Ink Recirculation System — circulates white ink at regular intervals during idle time
- Prevents white ink pigment sedimentation — the primary cause of printhead clogging in DTF printing
- Specially designed rotary unit prevents idle white ink bottle sedimentation
- Built-in white ink moisturizing function — 1 week of maintenance-free operation on the white channel
- Significantly extends Epson I3200 A1 white printhead life — reducing the most costly maintenance item in DTF production
- 1.5-litre bulk ink supply with white ink recirculation system for sustained production
High-Standard Motion System — THK Linear Guide
- Anti-deformation aluminium beam structure — prevents carriage rail deformation over time
- Igus chain + high-precision THK linear guide — stable, low-noise carriage movement at full production speed
- THK is a premium Japanese linear guide brand known for precision and longevity in industrial motion systems
- Active Tension Bar — constant tension and fixed movement range ensure wrinkle-free film feeding and precise stepping
- Reinforced structure prevents platform deformation during transportation
- Front and rear electric pinch rollers with touch-screen panel for smooth, comfortable operation

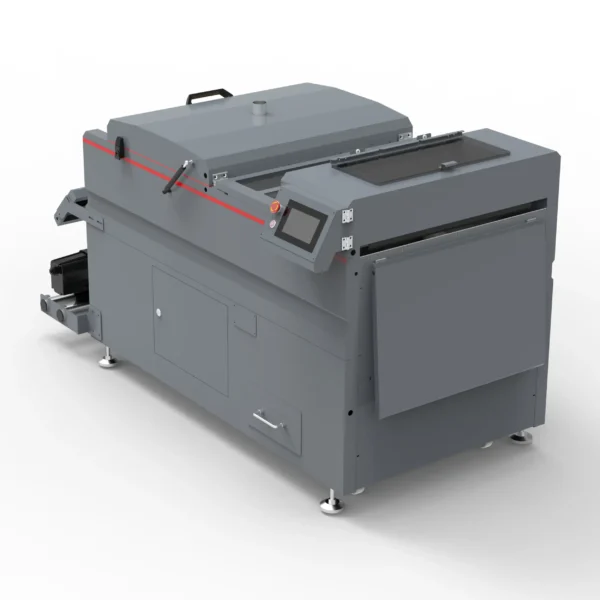

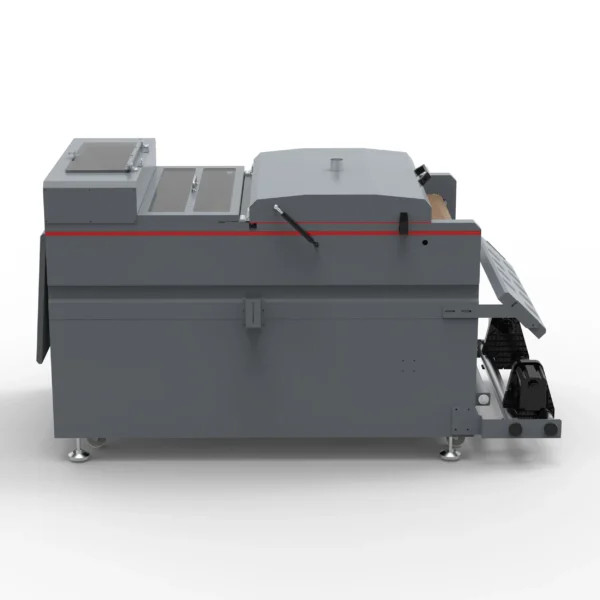

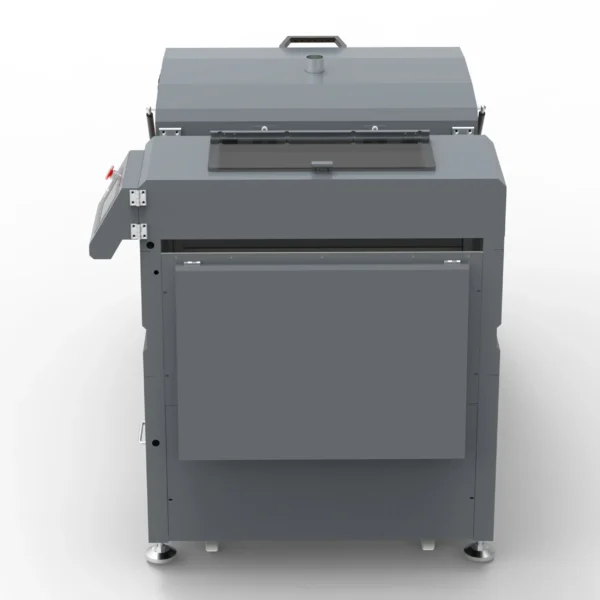

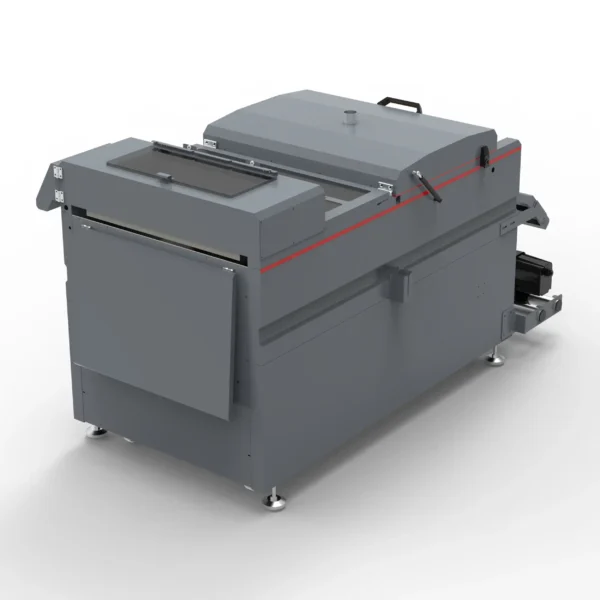

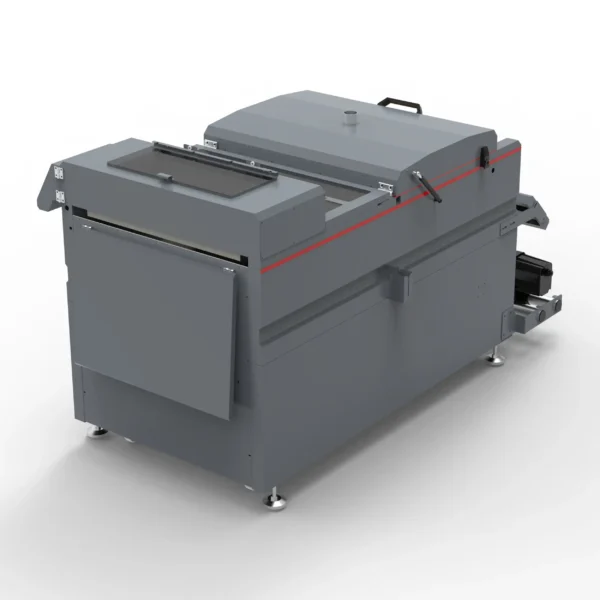

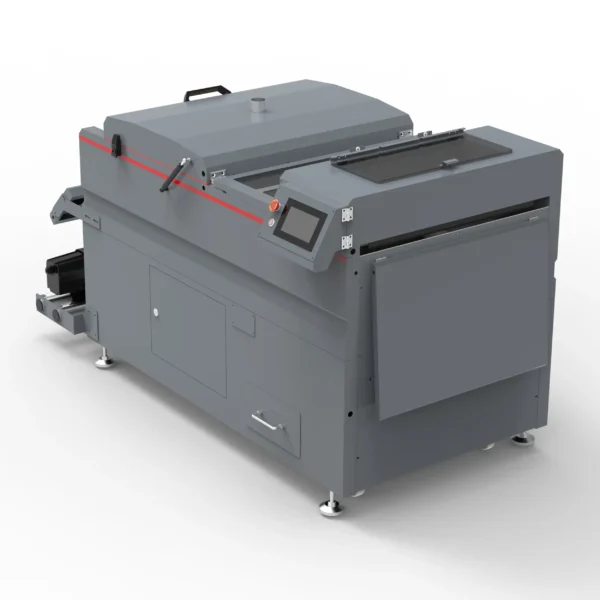

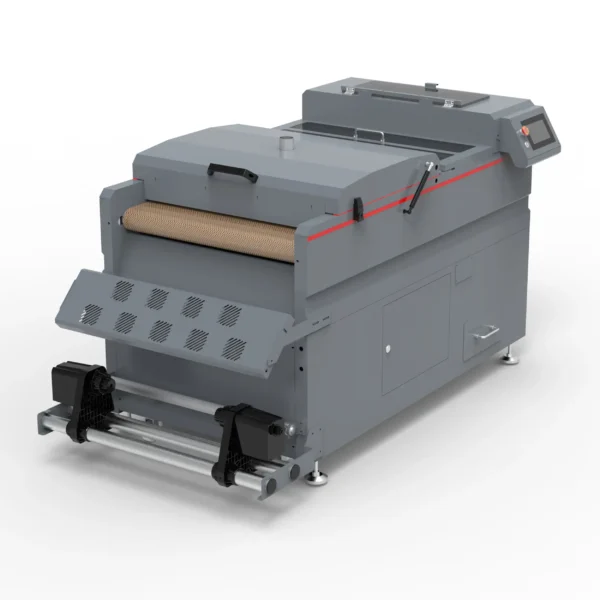

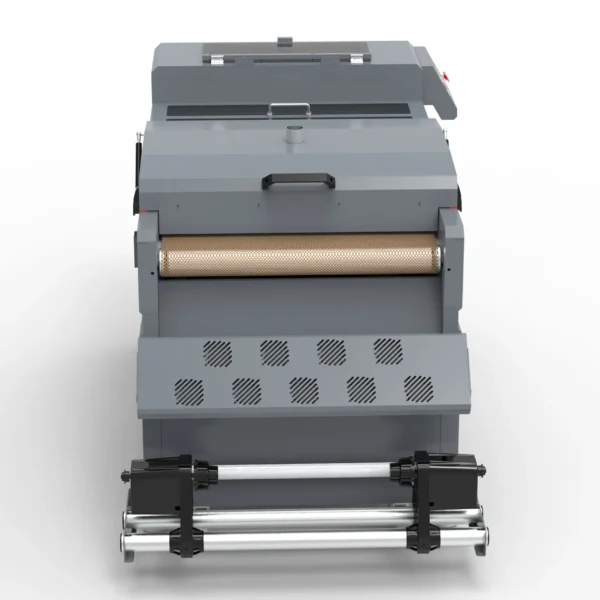

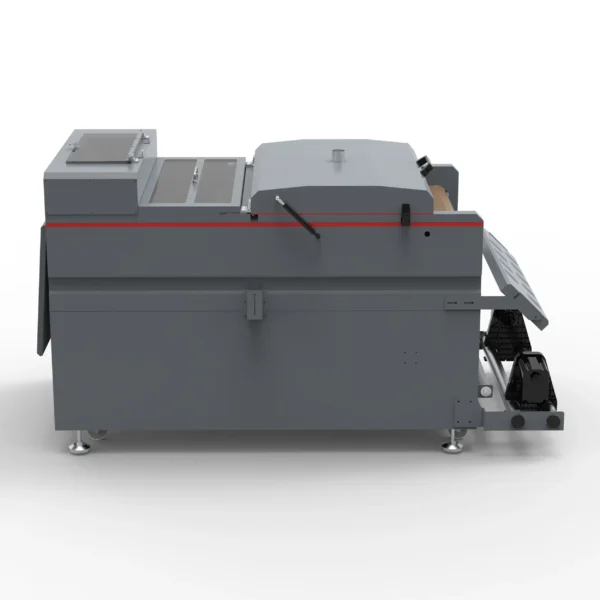

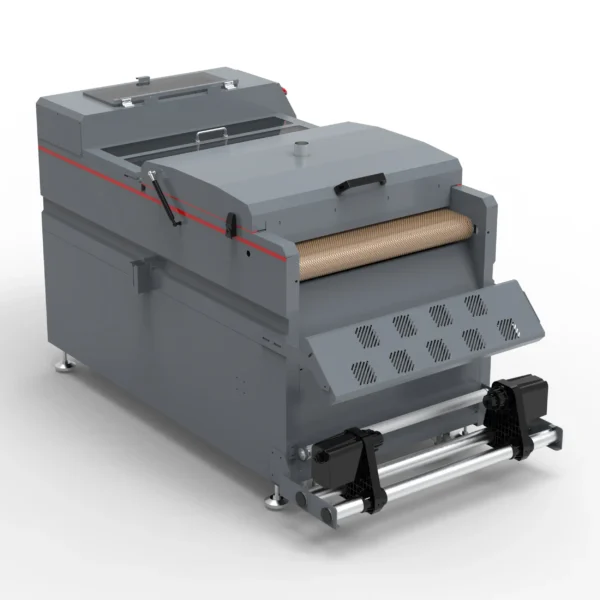

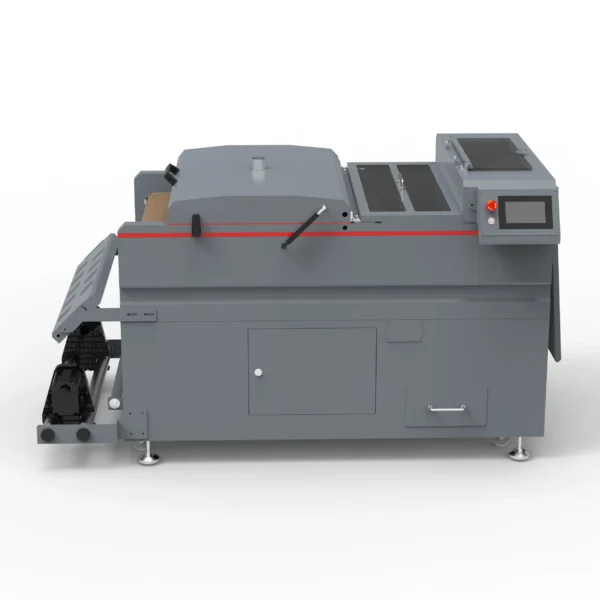

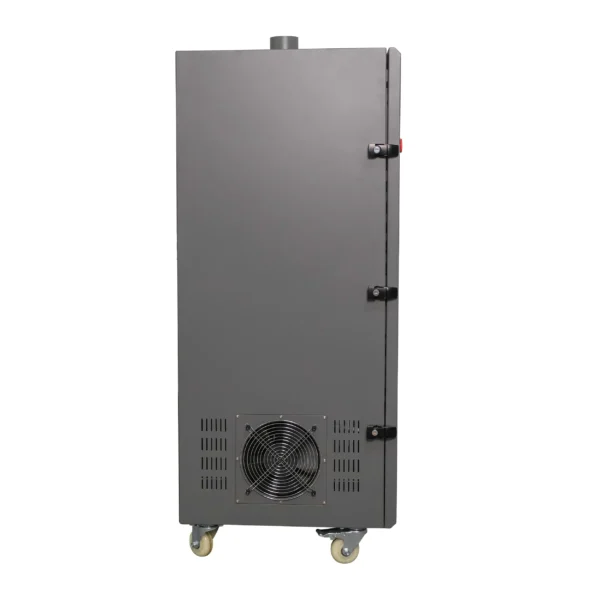

Integrated Shaker & Filter — Complete DTF Workflow
- Shaker: Four Rows High-Efficient Drying Lamp & Cold Air Fan drying system
- Automatically applies and bonds hot-melt adhesive powder to the wet DTF print

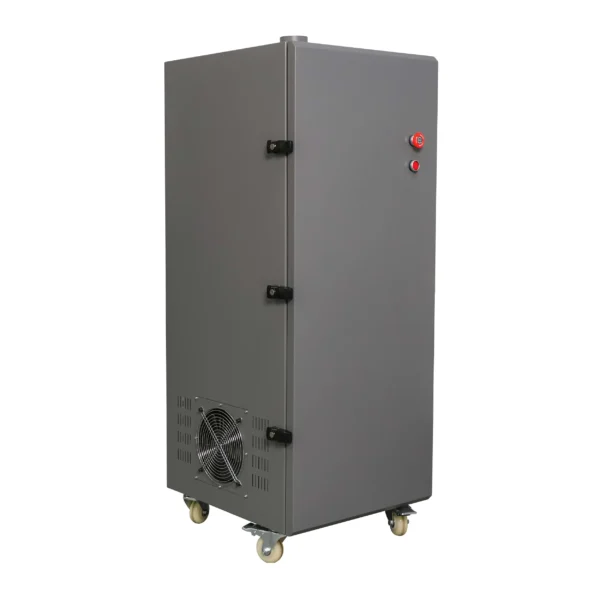

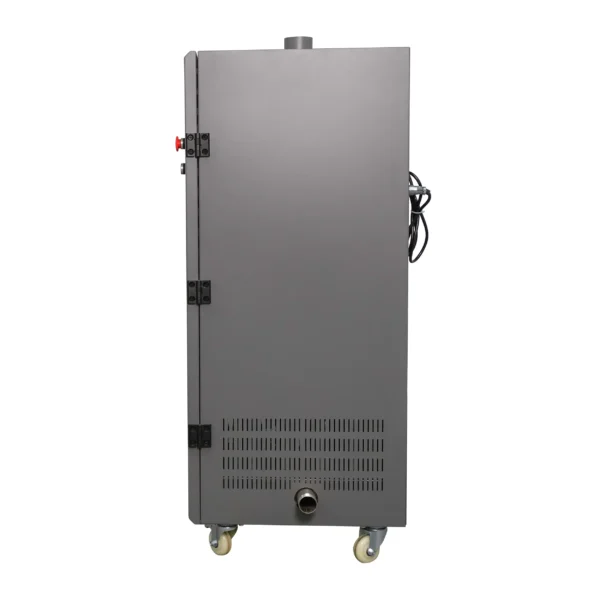

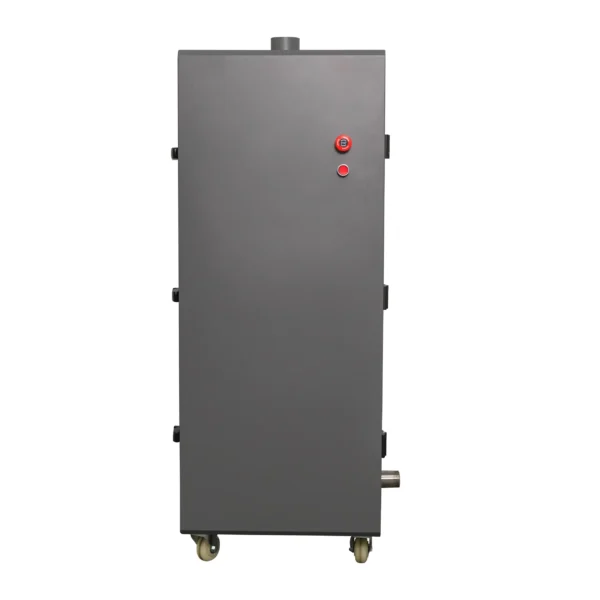

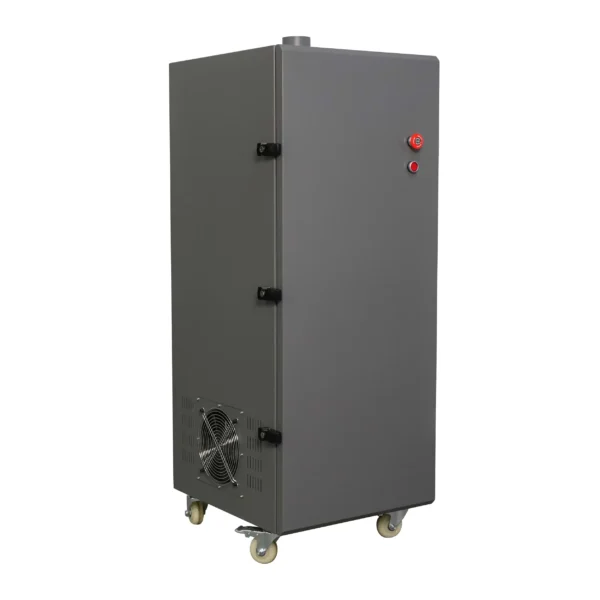

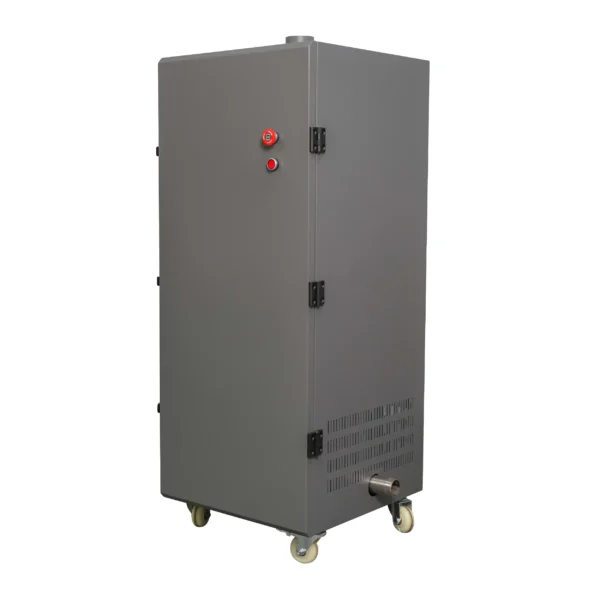

- Filter: cures the adhesive powder — the transfer film is ready for heat press directly after the filter unit
- Complete DTF production workflow in one system: Print → Powder → Cure → Heat Press → Done
- Shaker power: 23A | Filter power: 2A | Single phase 220V±10%
- LED built-in for easy print inspection and convenient maintenance access
