Gongzheng Pixy T4

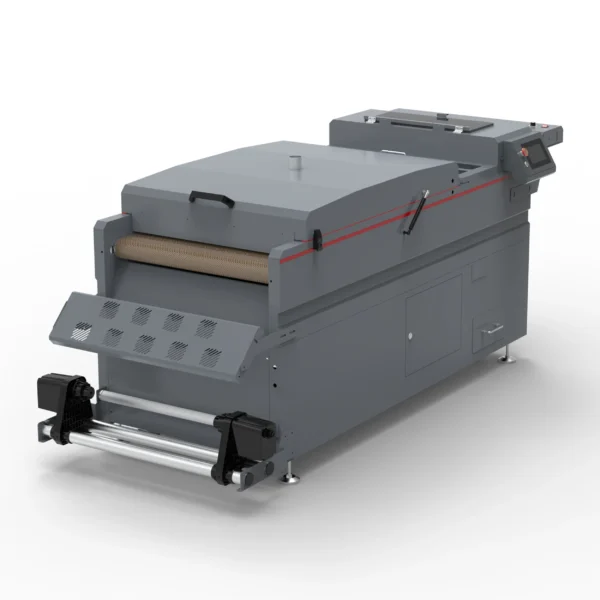

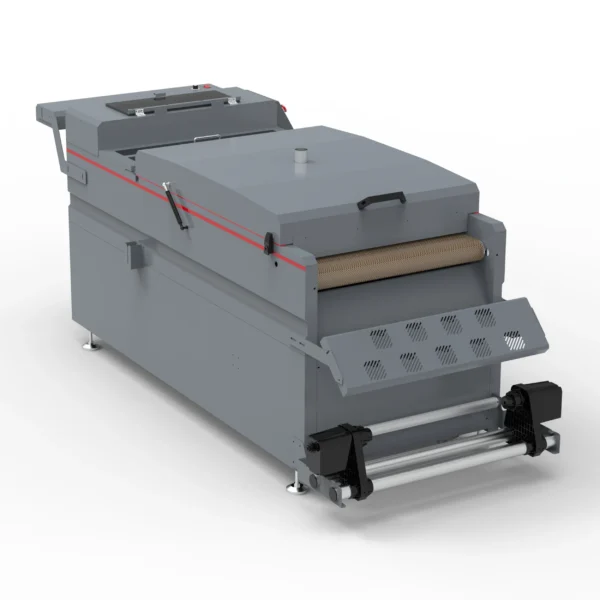

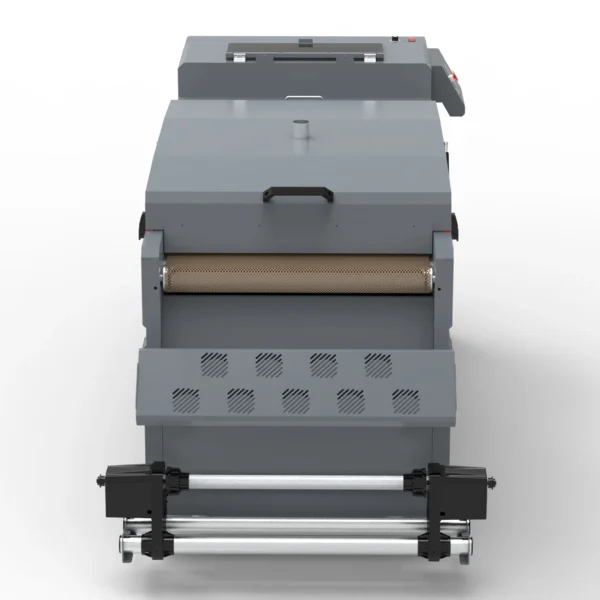

60cm DTF Textile Pigment Printer | 4× Epson I3200 A1 | 30 m²/hr | Fluorescent Ink Option | 2× White Channels | Pixy SK4 Shaker | Prints on Cotton, Polyester & Blends
OVERVIEW
The GongZheng Pixy T4 is the high-production step up in the Pixy DTF range — doubling the printhead count to 4× Epson I3200 A1 at 60cm width for 30 m²/hr in 4-pass mode and 20 m²/hr in 6-pass mode. Beyond raw speed, the T4’s defining advantage is its color versatility: standard 2×KCMY+2×W configuration delivers dual white channel opacity, while the optional KCMY+FoFgFyFm+2×W configuration adds Fluorescent Orange, Green, Yellow and Magenta — expanding the color gamut to achieve vivid, neon-bright colors that standard CMYK cannot reproduce. This is particularly valuable for outdoor sportswear, streetwear, and high-visibility fashion applications.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Gongzheng Pixy T4?
| Model | Pixy T4 |
| Technology | DTF — Direct-to-Film printing onto PET transfer film |
| Print Heads | 4 × Epson I3200-A1 printheads (natural 600 npi) |
| Ink Type | GS Original Transfer Pigment Ink |
| Color Config — Standard | 2×KCMY + 2×W (dual CMYK + dual white channels) |
| Color Config — Fluorescent | KCMY + FoFgFyFm + 2×W (CMYK + Fluorescent Orange/Green/Yellow/Magenta + dual white) |
| Ink Supply System | 1.5-Litre Bulk Ink Supply System with White Ink Recirculation System |
| Printing Width | 600 mm (60 cm) |
| Media Type | Transfer Film (PET DTF film) |
| Print Speed — 4-Pass | 720 × 1200 dpi 30 m²/hr |
| Print Speed — 6-Pass | 720 × 1800 dpi 20 m²/hr |
| Motion System | THK linear guide + Igus chain + anti-deformation aluminium beam |
| Data Interface | External: Ethernet Internal: Fiber Optical |
| Software | Onyx DTF + GZ Printer Manager |
| Working Environment | Temperature: 18°C–30°C Humidity: 35%–65% |
| Power | Single Phase, 50Hz/AC, 220V±10%, 16A |
| Packed Size | 2260 × 1000 × 750 mm |
| Installed Size | 1749 × 815 × 1539 mm |
| Gross Weight / Net Weight | 290 kg / 216 kg |
Description
4-Head DTF — Double T2 Output
- 4× Epson I3200-A1 printheads at natural 600 npi — double the effective nozzle count of the Pixy T2
- 30 m²/hr (4-pass, 720 × 1200 dpi) and 20 m²/hr (6-pass, 720 × 1800 dpi) — exactly double the T2’s speeds
- DTF prints on any fabric: cotton, polyester, poly-cotton blends, denim, silk, nylon — no pre-treatment required
- Vibrant, wash-resistant prints with soft hand-feel after heat press — GS Original Transfer Pigment Ink
- 1.5-litre bulk ink supply system with white ink recirculation — sustained production with minimal intervention
- Onyx DTF + GZ Printer Manager software for professional color management and RIP
Fluorescent Color Option — Unparalleled Gamut
- Optional 8-color fluorescent configuration: KCMY + Fo (Fluorescent Orange) + Fg (Fluorescent Green) + Fy (Fluorescent Yellow) + Fm (Fluorescent Magenta) + 2×W
- Fluorescent colors are popular for outdoor sportswear and streetwear — producing neon-bright, high-visibility effects impossible with standard CMYK pigment inks
- Expands color gamut significantly beyond CMYK — achieving saturated neon oranges, lime greens, electric yellows and hot pinks
- Standard configuration: 2×KCMY + 2×W — dual color and dual white channels for standard high-quality DTF production
- Fluorescent ink option must be specified at ordering — affects ink channel configuration
Dual White Channel System
- 2×W (dual white) configuration in both standard and fluorescent setups — enhanced white ink opacity on dark fabrics
- Dual white channels enable thicker white underbase layers for maximum color opacity on black garments
- White Ink Recirculation System — circulates white ink at regular intervals to prevent pigment sedimentation
- Convenient Moisturizing System — built-in white ink moisturizing for 1 week maintenance-free operation on both white channels
- Specially designed rotary unit prevents idle white ink bottle sedimentation — extending printhead life
High-Standard Motion System & User Features
- Anti-deformation aluminium beam structure — prevents rail deformation for precise printing over thousands of metres
- Igus chain + high-precision THK linear guide — stable, low-noise carriage movement at full 4-head production speed
- Active Tension Bar — constant tension and fixed movement range for wrinkle-free film feeding and precise stepping
- Built-in LED lights for easy print inspection and maintenance access
- Front-mounted buttons, rotary knobs, real-time data displays — user-friendly operation
- Touch-screen panel with front and rear electric pinch rollers for smooth operation
