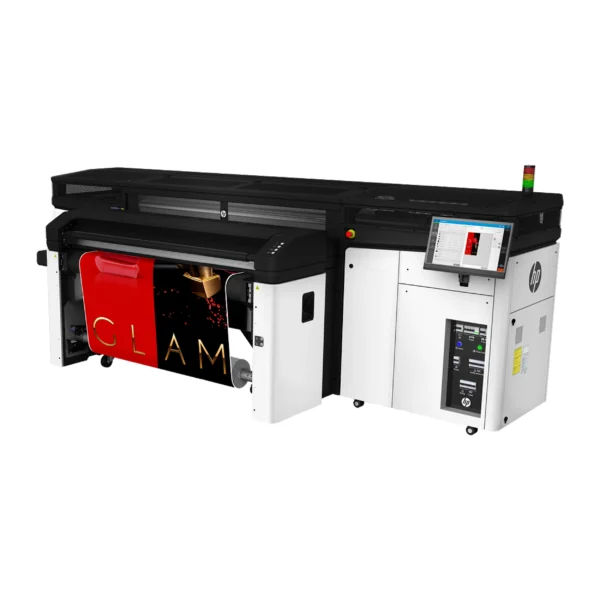

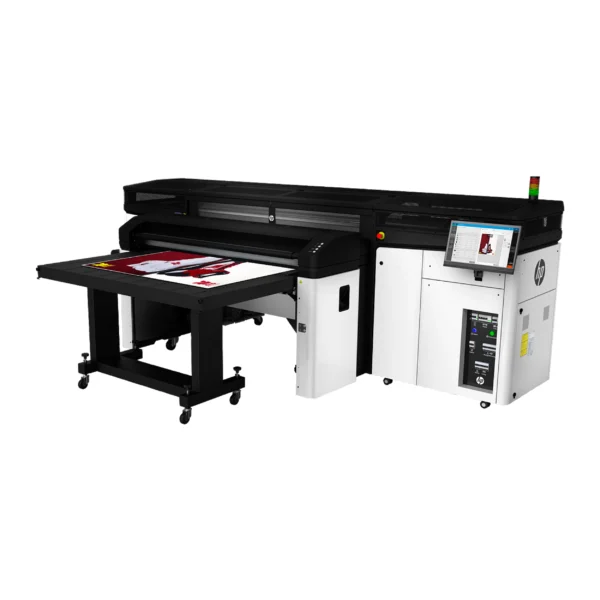

HP Latex R1000 Plus
Rigid & Roll-to-Roll Latex Printer | White Ink Built-In | Up to 64″ | Up to 56 m²/hr
OVERVIEW
The HP Latex R1000 Plus is the all-in-one version of HP’s rigid and flexible Latex printing platform — growing your business into higher-value jobs on rigid boards and roll media, on one device, with white ink built in from day one. Where the standard R1000 requires an optional kit for roll printing, the R1000 Plus ships with the HP Latex R1000 Roll Printing Accessory Kit included — complete with 64-inch spindles (×2), a pneumatic gun adapter, and table-top roll holders (×2). Combined with flatbed, sheet-feed, roll-feed, and vacuum belt media handling, the R1000 Plus is a genuinely do-it-all platform: rigid boards up to 1,625 × 3,050 mm (with extension tables) and roll media from 60.9 cm to 1.63 m wide, up to 68 kg and 25 cm diameter — all on the same machine, with the same glossiest, anti-yellowing white ink, and backed by a 1-year next-business-day on-site warranty.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex R1000 Plus?
| Print Resolution | Up to 1,200 × 1,200 dpi |
| Ink Type | Water-based HP Latex Inks |
| Ink Cartridges | 9 — Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, HP Latex Optimiser, HP Latex Overcoat, White |
| Cartridge Size | 3 L |
| Printheads | 8 — Cyan/Black, Magenta/Yellow, Light Cyan/Light Magenta, HP Latex Overcoat, 2× HP Latex Optimiser, 2× White |
| Color Repeatability | Average ≤ 1.0 dE2000 | 95% of colors ≤ 2 dE2000 (long-term print-to-print) |
| Media Handling | Flatbed, sheet feed, roll feed, vacuum belt media drive — easy loading, accurate media advance |
| Rigid Media Size | 297 × 420 mm to 1,625 × 1,220 mm (up to 1,625 × 3,050 mm with 2 sets of optional extension tables) |
| Roll Size | 60.9 cm to 1.63 m |
| Max Roll Weight | Up to 68 kg |
| Max Roll Diameter | Up to 25 cm |
| Media Thickness | Up to 50.8 mm (rigid) |
| Rigid Media Types | Paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminium composite panel, wood, glass, ceramic |
| Roll Media Types | PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non-porous), canvas, leather |
| Interface | Gigabit Ethernet (1000Base-T) |
| Power Consumption | 8 – 10 kW (typical) |
| Operating Temperature | 15°C – 30°C |
| Operating Humidity | 20 – 70% RH (non-condensing) |
| Warranty | 1-Year Limited Warranty (Next Business Day On-Site) |
| Printer (W × D × H) | 4.21 × 2.04 × 1.75 m |
| Printer with input/output tables | 4.21 × 3.64 × 1.75 m |
| Shipping Dimensions | 4.43 × 2.24 × 2.15 m |
| Operating Area Required | 6.61 × 6.03 × 3 m |
| Printer Weight | 1,400 kg |
| Shipping Weight | 2,400 kg |
Description
Rigid AND Roll — Built In, Not Bolted On
- The R1000 Plus ships with the HP Latex R1000 Roll Printing Accessory Kit as standard — including 64-inch spindles (×2), a pneumatic gun adapter, and table-top roll holders (×2). This is the core differentiator versus the standard R1000: roll media handling is included from the outset, not an optional add-on. One device covers rigid boards and roll substrates without a separate purchase or installation step.
White Ink Without Waste — Automatic & Always Ready
- Just like the standard R1000, white ink capability is built in. HP 886 White Latex Printheads can be stored in offline cassettes when not in use — no white ink is consumed during servicing while idle. Automatic recirculation and printhead cleaning eliminate manual purging, keeping the press always ready to print white on demand.
Glossiest White — Resists Yellowing
- Based on HP internal testing, the R1000 Plus produces the glossiest white among CMYK-configuration printers under $350,000 USD, at 60° gloss on rigid acrylic per ISO 2813 / ASTM D523. This white resists yellowing over time — critical for retail displays, signage, and decorative applications where color fidelity must hold up over the product’s lifetime.
Rigid up to 1625×3050mm + Roll up to 1.63m Wide
- Standard rigid media size is 297 × 420 mm to 1,625 × 1,220 mm, extendable to 1,625 × 3,050 mm with optional extension tables. Roll media handling covers 60.9 cm to 1.63 m width, rolls up to 68 kg and 25 cm diameter — covering the full spectrum of rigid board and roll substrate formats in a single footprint.
Up to 56 m²/hr — Six Print Modes for Every Job
- The same six dedicated print modes as the standard R1000: from 3.6 m²/hr for 3-layer day & night backlit graphics, to 56 m²/hr outdoor production. Indoor High Quality at 15 m²/hr and Indoor Production at 28 m²/hr give operators flexibility to match speed to quality requirements.
1-Year Next-Business-Day On-Site Warranty
- The R1000 Plus comes with a 1-year limited warranty including next-business-day on-site service — an upgrade over the 180-day warranty on the standard R1000. For businesses investing in an all-in-one rigid and roll platform, this extended coverage provides additional peace of mind during the critical first year of production.
