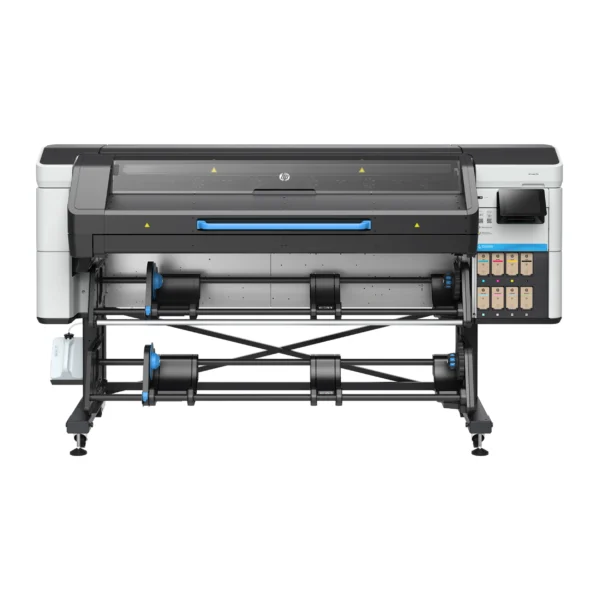

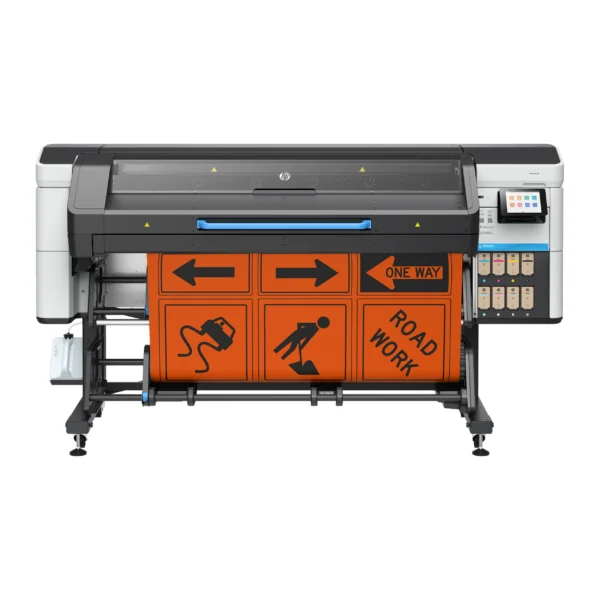

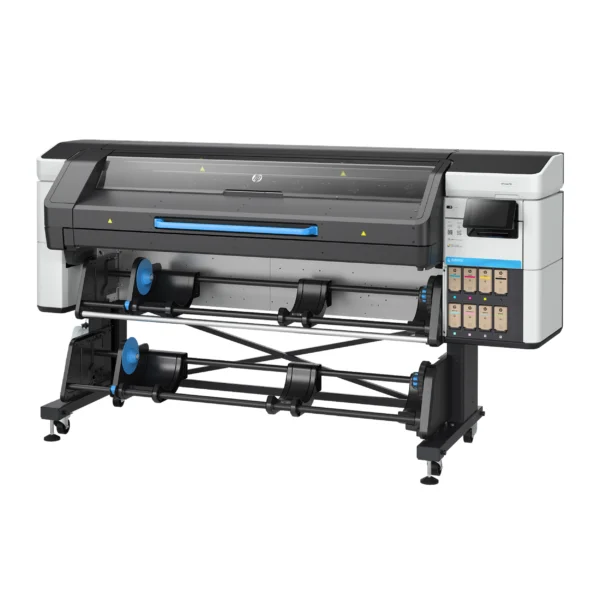

HP Latex 730
64-Inch Production Wide Format Printer | HP Pixel Control | Embedded Spectrophotometer
OVERVIEW
The HP Latex 730 Printer is HP’s high-productivity 64-inch wide format latex printer, engineered for professional print service providers and sign shops that demand consistent color quality, fast turnaround, and sustainable operations. The 730 adds HP Pixel Control ink mixing for uniform colors, an embedded spectrophotometer for on-the-fly color profiling, universal printheads with 50% longer life, and HP PrintOS Sustainability Amplifier — tools that define a new standard in production-grade wide format printing.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex 730?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies with HP Pixel Control |
| Ink Types | Water-based HP Latex Inks — 8 cartridges (CMYK, LC, LM, Optimizer, Overcoat) |
| Cartridge Size | 1 litre per cartridge |
| Printheads | 8 user-replaceable (7 HP Latex Universal Printhead + 1 HP Latex Optimizer) |
| Color Repeatability | Consistent quality via HP Embedded Spectrophotometer + HP Pixel Control |
| Print Speed | 334 ft²/hr (Draft, 4-pass) 226 ft²/hr (Speed, 6-pass) 183 ft²/hr (Standard, 8-pass) 172 ft²/hr (Quality, 12-pass) 118 ft²/hr (High Quality, 16-pass) |
| Double-sided Printing | Automated double-sided printing on PVC-free media |
| Max Media Width | 64 inches |
| Roll Width | 18–64 inches (full support 23–64 inches) |
| Max Roll Weight | 121 lb |
| Max Roll Diameter | 9.8 inches |
| Max Media Thickness | Up to 19.7 mil |
| Media Types | Canvas, Polyester films, PVC Banners, PVC-free Banners, Papers, Self-adhesive vinyls, PP & PE synthetics, Textiles, Wallcoverings |
| Media Handling | Roll feed, take-up reel, wiper roller, media saver, automatic horizontal cutter |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Dimensions (W×D×H) | 101.7 × 33.6 × 55.2 in Operating area: 110 × 82.7 in |
| Printer Weight | 575.4 lb Shipping: 798 lb |
| Operating Conditions | 59–86°F 20–80% RH (non-condensing) |
| Power Consumption | 1.5–2.5 kW (5 kW peak) printing 95 W ready <0.25 W off |
| Acoustics | 60 dB(A) operating 38 dB(A) idle <20 dB(A) sleep |
| Warranty | One-year limited hardware warranty |
Description
Consistent Quality — High-Value Applications
- HP Pixel Control ink mixing delivers uniform colors and precise ink distribution across every print
- HP Embedded Spectrophotometer enables color profile creation and verification on the printer itself
- Achieve consistent quality across jobs and create ICC color profiles without external hardware
- Deliver vivid colors and sharp 4-point text with user-replaceable HP Latex Printheads
- Wide range of signage and décor jobs including automated double-sided printing on PVC-free media
Simplified Production — Optimise Printing Processes
- Universal printheads with 50% extended life reduce inventory complexity and maintenance frequency
- New 50% longer-life maintenance cartridge with ink collection unit minimises consumable changeovers
- Spindle-less front-loading and media-saver feature reduce setup time and substrate waste
- Print from the leading edge — print directly from the start of the roll without waste or trimming
- Production speeds up to 31 m²/hour with prints that dry instantly — no off-gassing wait time
- HP PrintOS Production Hub — end-to-end software solution for streamlined print workflow management
Lead the Way — Sustainable Operations
- Only EPEAT Climate+ registered printer in the signage industry — the highest sustainability credential
- Water-based HP Latex Inks — odorless prints certified neutral by Odournet per VDI 3882
- UL ECOLOGO® certified HP 832 Latex Inks — meets stringent human health & environmental criteria
- HP PrintOS Sustainability Amplifier software — track and reduce your environmental footprint
- Returnable supplies via HP Planet Partners — including new returnable maintenance cartridge
- ENERGY STAR®, UL GREENGUARD Gold, RoHS, REACH, French VOC A+, Meets AgBB criteria
