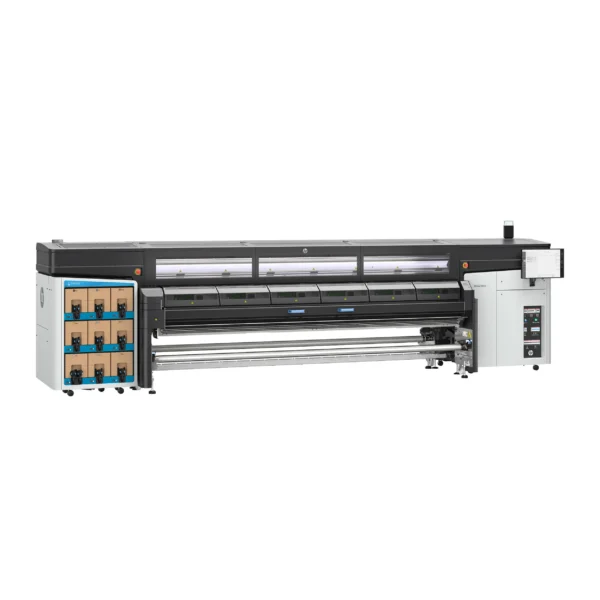

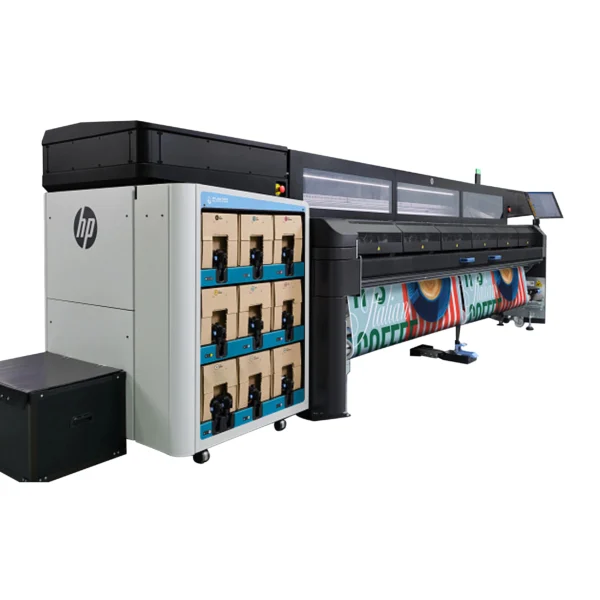

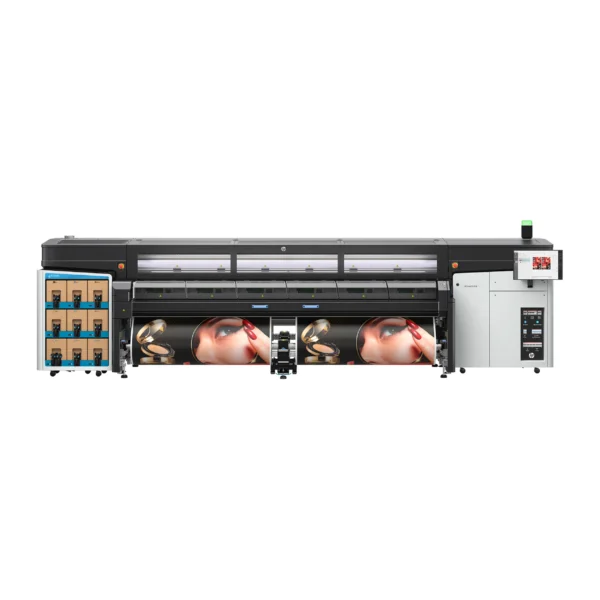

HP Latex FS70W
HP’s Most Productive Latex Printer | 126-Inch Superwide | White Ink | HP 893 10-Litre Inks | 162 m²/hr | Embedded Spectrophotometer | 2-Year Warranty
OVERVIEW
The HP Latex FS70W Printer is HP’s most productive Latex printer —a superwide 126-inch (3.2 m) roll-to-roll production printer engineered for the highest-volume print service providers demanding maximum throughput, consistent color, profitable white ink applications, and a future-proof platform. With HP 893 10-liter color cartridges, a 6-litre white ink cartridge, HP Embedded Spectrophotometer, HP Configuration Center, and Scale Up Kits included in the box, the FS70W delivers up to 162 m²/hr maximum speed, 117 m²/hr outdoor boost quality, and 5 white ink print modes — all backed by a 2-year limited hardware warranty.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex FS70W?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies — HP Latex Gen 4 Inks |
| Ink Types | Water-based HP Latex Inks — 9 cartridges (CMYK, LC, LM, Optimizer, Overcoat, White) |
| Color Cartridge Size | 10 litres (HP 893) — standard |
| White Cartridge Size | 6 litres (HP 893 White — AL9S4A) |
| Printheads | 9 HP 886 printheads (6 HP Latex Universal, 2 HP Latex Optimizer, 1 HP Latex White) |
| Color Print Speed | 162 m²/hr (2-pass, max) 117 m²/hr (3-pass, outdoor boost) 91 m²/hr (4-pass, indoor boost) 61 m²/hr (6-pass) 46 m²/hr (8-pass) |
| White Print Speed | 57 m²/hr (White Spot, 60%) 17 m²/hr (White Overflood, 100%) 17 m²/hr (White Underflood, 100%) 10 m²/hr (3-Layer, 60%) 3.7 m²/hr (5-Layer) |
| White Print Modes | 5 modes: White Spot · White Overflood · White Underflood · 3-Layer · 5-Layer |
| Color Consistency | HP Embedded Spectrophotometer + HP Configuration Center for on-printer ICC profiling and global fleet consistency |
| Max Media Width | 3.2 m (single roll) 2 × 1.60 m (dual roll) 2 × 1.53 m (jumbo dual roll — included in box) |
| Max Roll Weight | Up to 300 kg (single roll, with diverter roller) Up to 2 × 200 kg (jumbo dual roll) |
| Max Roll Diameter | Up to 40 cm |
| Max Media Thickness | Up to 0.4 mm (default) Up to 2.0 mm (custom carriage height setting) |
| Media Types | Banners, self-adhesive vinyl, films, papers, wallcoverings, canvas, synthetics, fabrics, mesh, textiles |
| Media Handling | Roll-to-roll, double-sided blockout, dual-roll, roll-to-freefall (optional), ink collector (included in box) |
| Connectivity | Intel I210-T1 Gigabit Ethernet (1000Base-T) HP Internal Print Server + Touch Monitor |
| Dimensions (W×D×H) | 574 × 138 × 167 cm (printer) |
| Printer Weight | 1,370 kg Shipping: 2,350 kg |
| Operating Conditions | 15–30°C 20–70% RH (non-condensing) |
| Power Consumption | 12–13 kW (printing) 510 W (ready) 110 W (low power) 100 W (shutdown) |
| Power Requirements | 200–240 / 380–415 V Delta/Wye, three-phase, PE; 50/60 Hz; 56/35 A |
| Acoustics | 71 dB(A) operating 58 dB(A) idle |
| Warranty | Two-year limited hardware warranty |
Description
Stunning — Reliable Image Quality, Accelerated
- HP’s most productive Latex printer — 162 m²/hr max (2-pass), 117 m²/hr outdoor boost (3-pass, 6-color, 90%), 91 m²/hr indoor boost (4-pass, 6-color, 110%)
- Vibrant, stunning color at speed — HP Latex Productivity Kit enables boost modes on SAV, Banner, Wallpaper, and Canvas
- HP Embedded Spectrophotometer for on-printer ICC color profiling — consistent color without external calibration hardware
- HP Configuration Center for consistent color and quality configurations across your global fleet
- Enhanced printhead care for robust quality on high-volume jobs
- 30% wider color gamut vs. leading UV alternatives (HP Latex Gen 4 inks)
White Ink — 6-Litre — 5 Modes at Production Scale
- 5 white print modes at 126-inch (3.2 m) production width: Spot, Overflood, Underflood, 3-Layer, 5-Layer
- White print speeds: 57 m²/hr (White Spot, 60%) · 17 m²/hr (White Overflood, 100%) · 17 m²/hr (White Underflood, 100%) · 10 m²/hr (3-Layer, 60%) · 3.7 m²/hr (5-Layer)
- HP 893 6-litre White Latex Ink Cartridge (AL9S4A) — double the capacity vs. HP 883 3-litre white on FS50W
- 1 dedicated HP 886 White Latex Printhead (G0Z21A) — user-replaceable
- White ink enables opaque prints on dark/transparent substrates, backlit with underflood, multi-layer for premium opacity across the full 3.2 m width
Productive — Durable Performance, Long-term Profitability
- HP 893 10-litre color cartridges — standard across the FS70W. Fewer changeovers, lower cost per m², maximum uptime on long runs
- Scale Up Kits included in box: HP Latex Productivity Kit, HP 2700/FS Jumbo Dual Roll Kit, HP FS Series High-Capacity Ink Upgrade
- Jumbo dual roll standard (2 × 1.53 m, up to 2 × 200 kg) and diverter roller included — supports rolls up to 300 kg single roll and up to 40 cm diameter
- HP Latex 2700/FS Ink Collector Kit included in box for porous textile printing
- Optional overcoat printhead (B06M3A) for enhanced laminated job efficiency
- Optional inline slitters (M2J33A) for automated slit-to-finish workflow
- HP PrintOS Production Hub — only large-format software for order intake and remote printer control (HP Plus plan)
- Enhanced unattended printing and optimised print modes powered by HP’s robust engineering
Sustainable — Certified Water-Based HP Latex Inks
- UL ECOLOGO® certified HP 883, 886 and 893 Latex inks — stringent human health & environmental criteria
- UL GREENGUARD Gold certified — low chemical emissions. Unrestricted room size; 33.4 m² office; 94.6 m² classroom
- Odorless prints — HP 893, 883 and 886 inks characterised as ‘weak’ intensity and ‘neutral’ hedonic tone (Odournet, VDI 3882)
- French VOC A+ rated — prints on HP PVC-free Wallpaper with HP Latex Inks
- Meets AgBB criteria for health-related evaluation of VOC emissions in indoor building products
- HP Sustainability Amplifier software — reduce environmental impact through self-assessment and recognition
- HP Planet Partners returnable supplies and hardware programme
- WEEE, RoHS (EU, China, Ukraine), CE marking compliant
