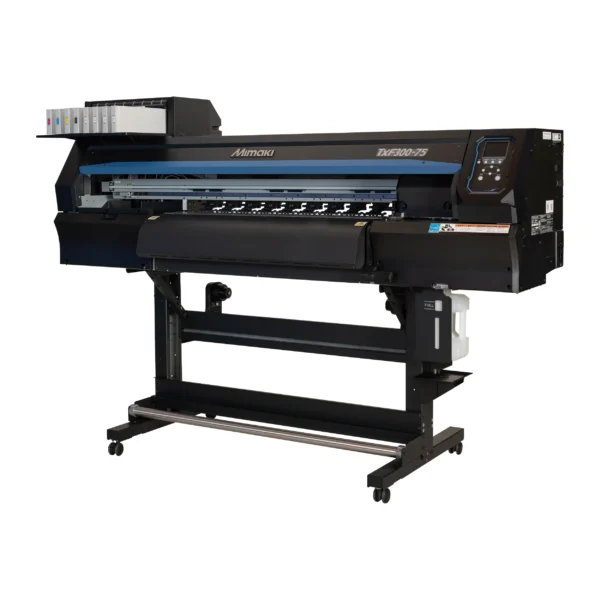

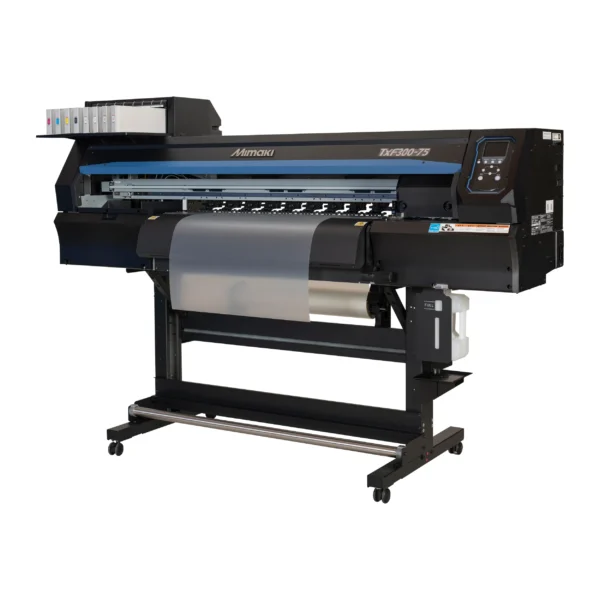

Mimaki DTF TXF 300-75
The Mimaki TxF300 series is the Pro-model DTF printer range — the TxF300-75 (800mm, 62 large T-shirts/hr) and TxF300-1600 (1,610mm, 84 T-shirts/hr) — delivering approximately 3× the productivity of the entry-level TxF150-75 (22 T-shirts/hr). Both models share the same PHT50 ECO PASSPORT heat transfer pigment ink, MCT Version 2 white ink circulation, NCU/NRS nozzle management, and RasterLink7 DTF workflow as the TxF150-75 — but add three important upgrades: 1,080 dpi resolution (new middle quality mode), optional 4-cartridge add-on for up to 8 white ink cartridges (OPT-J0572) for extended continuous output, MRA (Mimaki Remote Access) for smartphone and PC remote operation, and PICT (Mimaki Cloud Technology) for real-time remote monitoring of printer operation and ink usage. The TxF300-1600 further expands application to interior fabrics — curtains, floor mats, soft furnishing — in addition to garments and accessories.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Mimaki DTF TXF 300-75?
| Series | TxF300 — Pro DTF Series (TxF300-75 and TxF300-1600) |
| Brand | Mimaki Engineering Co., Ltd. |
| Technology | DTF (Direct-to-Film) Heat Transfer Inkjet Printer |
| Print Head | On-demand piezo head |
| Resolutions | 720 dpi 1,080 dpi (NEW — not available on TxF150-75) 1,440 dpi |
| Ink Type | PHT50 — Heat transfer pigment ink (C, M, Y, K, W) |
| Ink Capacity | 600 ml aluminium pack (C/M/Y/K) 500 ml aluminium pack (W) |
| White Cartridges (Standard) | 4 cartridges |
| White Cartridges (Optional) | Up to 8 cartridges with OPT-J0572 (4-cartridge add-on) |
| Circulatory Function | White ink only — MCT Version 2 (full circuit including damper) |
| TxF300-75 Drawing Width | 800 mm (31.5 in) Media width: 810 mm |
| TxF300-1600 Drawing Width | 1,610 mm (63.4 in) Media width: 1,620 mm |
| Media Thickness | 1.0 mm or less |
| Roll Weight | 45 kg (99.2 lb) or less |
| Interface | Ethernet 1000BASE-T USB 2.0 Hi-speed |
| Power Supply | Body: Single-phase AC100–120V / AC200–240V ±10%, 50/60Hz ±1Hz |
| Power — TxF300-75 | AC100V: 1 kW or less AC200V: 1.3 kW or less |
| Power — TxF300-1600 | AC100V: 1.3 kW or less AC200V: 1.75 kW or less |
| Certifications | VCCI Class A FCC Class A ETL IEC 62368-1 CE Marking CB REACH ENERGY STAR RCM KC |
| Dimensions — TxF300-75 | 1,965 × 700 × 1,392 mm (77.4 × 27.6 × 54.8 in) |
| Dimensions — TxF300-1600 | 2,783 × 700 × 1,392 mm (109.6 × 27.6 × 54.8 in) |
| Weight — TxF300-75 | 126 kg (277.8 lb) |
| Weight — TxF300-1600 | 166 kg (366.0 lb) |
| Remote Access | MRA (Mimaki Remote Access) — smartphone / Windows PC |
| Cloud Monitoring | PICT (Mimaki Cloud Technology) — real-time ink and operation monitoring |
| RIP Software | RasterLink7 (bundled) — Fill-in-Contour, Variable Print |
| Optional Upgrade | OPT-J0572 — 4-cartridge add-on for up to 8 white cartridges |
Description
~3× Productivity vs TxF150-75
- TxF300-75 delivers 62 large T-shirts/hr vs TxF150-75’s 22 — approx. 3× productivity at the same 800mm print width. TxF300-1600 reaches 84 T-shirts/hr at 1,610mm (30% more than TxF300-75 when using full-size DTF film).
New 1,080 dpi Resolution Mode
- Adds a mid-quality 1,080 dpi mode between 720 dpi (production) and 1,440 dpi (high quality) — not available on the TxF150-75. Provides more flexibility in balancing print quality and throughput.
Up to 8 White Ink Cartridges (OPT-J0572)
- The optional 4-cartridge add-on (OPT-J0572) doubles white ink capacity from 4 to 8 cartridges — allowing longer continuous output lengths without white ink changeover interruptions. Essential for high-volume unattended production.
MRA — Smartphone & PC Remote Operation
- MRA (Mimaki Remote Access) enables operation via smartphone or Windows PC over the same LAN segment. List ink type, heater temperature, notification alerts — and operate the machine with the same interface as the physical panel.
PICT — Mimaki Cloud Monitoring
- PICT (Mimaki Cloud Technology) monitors printer operation and ink usage remotely in real time. Supports better production planning — real-time operational status, performance data, scheduled maintenance alerts, and ink refill preparation.
TxF300-1600 — Interior Fabric Applications
- At 1,610mm print width, the TxF300-1600 enables DTF printing on interior fabrics — curtains, floor mats, soft furnishings — in addition to all garment applications. Custom T-shirt business expansion in limited space.
