Mimaki Tiger 600-1800TS
The Mimaki Tiger600-1800TS is Mimaki’s industrial-class 1.8m high-speed dye-sublimation transfer inkjet printer — the next generation of the Tiger series, delivering up to 550 m²/hr at 300×600 dpi for fashion apparel and 310 m²/hr at 600×600 dpi for high-density sportswear requiring black-out. This is an entirely different class from the TS sublimation range (TS100/TS55/TS330): it uses 8 print heads in a 4×2 staggered array, requires three-phase 380–415V industrial power at 15 kW, uses MLSb510 ink in 10kg tanks (replaceable during printing), and has a machine footprint of 5,300×2,800×1,900mm. The Tiger600-1800TS introduces a newly designed wrinkle-removing roller (prevents cockling of thin transfer paper at high transport tension), one-side paper loading/unloading (≈50% footprint reduction, ≈80% weight reduction vs previous Tiger model), Head Select Function (continues printing using available heads when some nozzles are severely clogged), and TxLink4 Standard or Professional RIP for advanced textile workflow.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Mimaki Tiger 600-1800TS?
| Model | Tiger 600-1800TS |
| Brand | Mimaki Engineering Co., Ltd. |
| Category | 1.8m Wide High-Speed Sublimation Transfer Inkjet Printer — Industrial |
| Print Head Type | On-demand piezo print head |
| Number of Print Heads | 8 units — 4 heads in-lined × 2 staggered layout |
| Print Resolutions | 300 dpi 600 dpi |
| Max Print Speed | 5920.15 ft²/hr @ 300 × 600 dpi, 1-pass (fashion apparel / practical quality) |
| Standard Speed | 3336.81 ft²/hr @ 600 × 600 dpi, 1-pass (high-density sportswear / soft signage) |
| Max Printable Width | 1,850 mm (72.8 in) |
| Min Printable Width | 210 mm (8.3 in) |
| Max Media Width | 1,900 mm (74.8 in) |
| Paper Core Diameter | 3 inches |
| Media Roll Diameter | 600 mm or less (≤ 23.6 in) |
| Media Weight | 300 kg or less (≤ 661.4 lb) |
| Ink Type / Colors | Sublimation Transfer Ink MLSb510 — Blue (Bl) / Magenta (M) / Yellow (Y) / Black (K) |
| Ink Supply | 10 kg Ink Tank — replaceable during printing |
| Ink Circulation | Built-in — automatically agitates ink, reduces maintenance time |
| Interface | Ethernet 10GBASE-T USB 2.0 (Removable Disk) |
| Operation Method | Built-in touch panel |
| Operation Software | Exclusive Software MPC (Mimaki Print Controller) |
| RIP Software | TxLink4 Standard or Professional — PC prepared separately by customer |
| Power Supply | 3-phase 380–415V ±5%, 50/60Hz ±1%, 25A |
| Power (Max Operating) | 15.0 kW or less |
| Power (Standby) | 1.0 kW or less |
| Operating Temperature | 20–30°C (68–77°F) |
| Operating Humidity | 35–65% RH (non-condensing) |
| Dust Level | 0.15 mg/m³ or less (equivalent to general office floor level) |
| Max Operating Altitude | 2,000 m |
| Certifications | ETL compliant IEC62368-1 CE Marking (EMC, Low Voltage, Machinery Directive) CB certification RoHS / REACH RCM KC certification UKCA |
| Dimensions (W×D×H) | 5,300 × 2,800 × 1,900 mm (209 × 110 × 75 in) |
| Weight | 1,620 kg or less (≤ 3,572 lb) Total of entire system |
| Installation Space | 8,300 mm × 5,000 mm minimum 1,500 mm clearance on all sides required |
| Safety | Light Curtain — detects obstructions, halts printing Maintenance Switch Purified water for automatic maintenance (customer-supplied) |
Description
550 m²/hr — Fashion Apparel Practical Quality
- 300×600 dpi 1-pass delivers 550 m²/hr at practical quality for fashion apparel. 310 m²/hr at 600×600 dpi 1-pass for high-density sports prints requiring black-out. New high-speed drive print head design.
8-Head Array — 4×2 Staggered Layout
- 8 print heads arranged in 4 heads × 2 staggered rows. High-productivity print carriage achieves the Tiger’s speed through massive head area coverage per carriage pass.

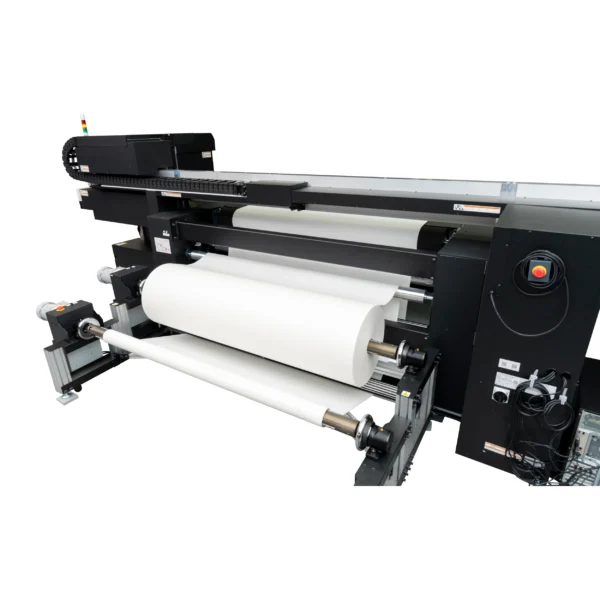

One-Side Operation — 50% Footprint Reduction
- Both paper loading (unwinder) and unloading (take-up) performed from one side. ≈50% operational footprint reduction and ≈80% weight reduction vs previous Tiger model. Greatly eases installation and space requirements.

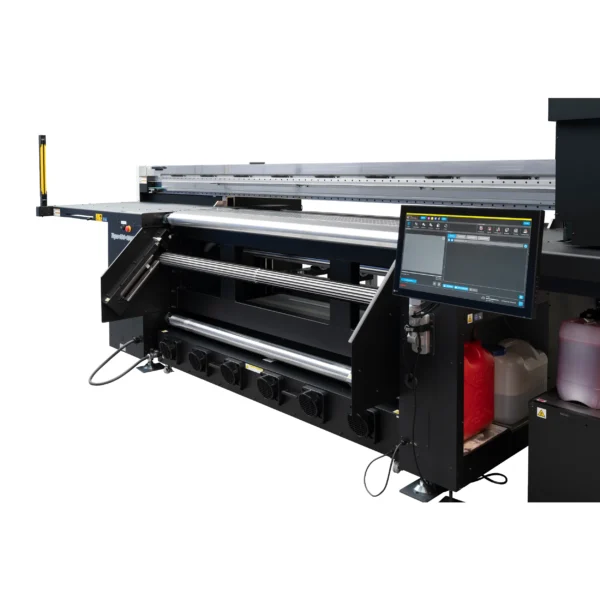

Wrinkle-Removing Roller — Thin Paper Stability
- Newly designed roller allows wrinkles caused by transport tension to escape — preventing cockling and printhead contact with paper. Enables stable printing on thin transfer paper, reducing running cost.
Head Select Function — Production Continuity
- When large numbers of nozzles are clogged, Head Select Function continues the print job using available head range — maintaining productivity without stopping for service. Reduces unplanned downtime.
MLSb510 — 10kg Hot-swap Ink Tanks + Circulation
- 10kg ink tanks replaceable during printing — no production stop for ink changeover. Ink circulation function continuously agitates ink in the system, reducing maintenance time. ECO PASSPORT + ZDHC MRSL Level 3.
