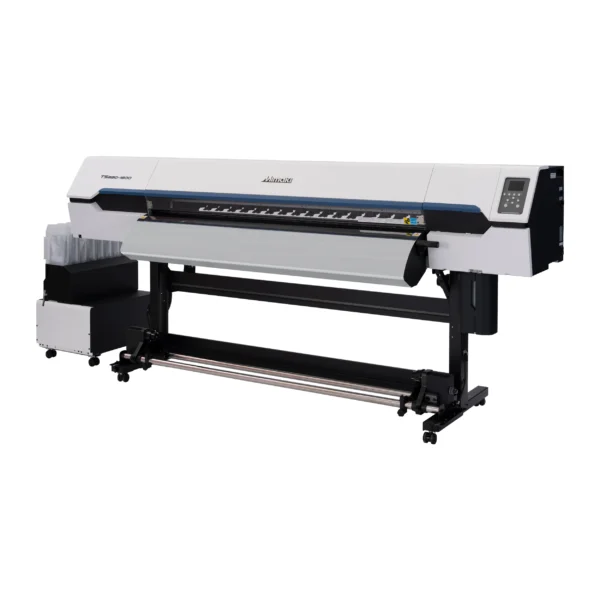

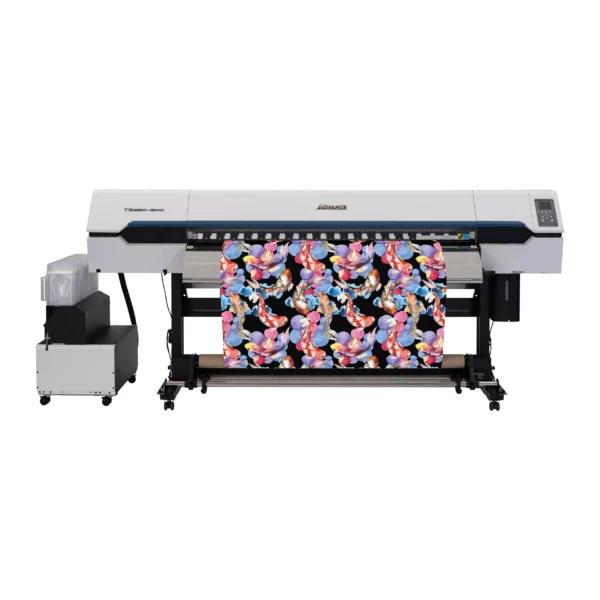

Mimaki TS330-1600
The Mimaki TS330-1600 is a 1.6m water-based dye sublimation inkjet printer designed for textiles and apparel — achieving superb productivity of 69 m²/hr in Draft mode (38% faster than conventional Mimaki models in Draft) and 135 m²/hr in maximum speed mode. It combines Mimaki’s latest Weaving Dot Technology (new drop ejection control with near-spherical droplets for uniform solid colors at low passes), an improved conveyance mechanism (dual take-up motors, media edge guide, high-durability post-heater), and a comprehensive suite of Mimaki reliability technologies (DAS, Waveform Control, MAPS4, Variable Dot Control, NCU/NRS). Three user-experience advances make it distinctive: the Cloth Wiper (replaces rubber — absorbs thick adhesive clots from nozzle surface), V-Shape Cutting Function (reduces media waste and core-attachment error), and MRA (Mimaki Remote Access) for full smartphone monitoring and operation.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Mimaki TS330-1600?
| Model | TS330-1600 |
| Brand | Mimaki Engineering Co., Ltd. |
| Technology | Water-based dye-sublimation transfer inkjet printing |
| Print Head | On-demand piezo head — 2 staggered layout |
| Drop Technology | Mimaki Weaving Dot Technology — near-spherical droplets, new ejection control |
| Variable Drop | Minimum 4 pl — 3 drop sizes for smooth gradation |
| Print Resolutions | 300 dpi 600 dpi 900 dpi 1,200 dpi |
| Maximum Print Speed | 1453.13 ft²/hr (MAX: 300 × 600 dpi, 1P Bi) |
| Draft Speed | 742.71 ft²/hr (600 × 600 dpi, 2P Bi) 38% faster than conventional |
| Maximum Printable Width | 1,610 mm (63.4 in) |
| Maximum Media Width | 1,620 mm (63.8 in) |
| Roll Diameter | φ250 mm (9.8 in) or less |
| Core Diameter | 2 / 3 in |
| Roll Weight | 45 kg (99.2 lb) or less |
| Print Gap | Manual adjustment by 3 levels: 3.0 / 3.5 / 4.0 mm |
| Ink Set — 4C | Sb411: Blue (Bl), Magenta (M), Yellow (Y), Black (K) |
| Ink Set — 6C (Option A) | Sb411 BMYK + Sb410 Fy (Fluorescent Yellow) + Sb410 Fp (Fluorescent Pink) |
| Ink Set — 6C (Option B) | Sb411 BMYK + Light Magenta (Lm) + Light Blue (Lbl) |
| Ink Set — 7C | Sb411 BMYK + Lm + Lbl + Light Black (Lk) |
| Ink Set — 8C | Sb411 BMYK + Lm + Lbl + Fy + Fp |
| Ink Capacity | 2L ink pack (all colors) 10 kg ink tank (B/M/Y/K only — others use 2L in parallel) |
| Interface | Ethernet 1000BASE-T USB 2.0 High-speed |
| Power Supply | Single phase AC100–120V / AC200–240V ±10%, 50/60Hz ±1Hz |
| Power Consumption | Main unit max: 1,440W Standard: 800W |
| Working Environment | Temperature: 20–30°C (68–77°F) Humidity: 35–65% RH (no condensation) |
| Dimensions (W×D×H) | 3,170 × 820 × 1,305 mm (124.8 × 32.3 × 51.4 in) |
| Weight | 240 kg (529.1 lb) |
| Wiper Type | Cloth Wiper — absorbs ink from nozzle surface (unique to TS330) |
| Media Cutting | V-Shape Cutting Function — automatic tapering before core wrapping |
| Remote Access | MRA (Mimaki Remote Access) — smartphone monitoring and operation via same-segment LAN |
| Reliability Systems | DAS Waveform Control MAPS4 Variable Dot Control NCU / NRS |
| RIP Software | RasterLink7 (selectable) TxLink4 Lite (selectable) |
Description
135 m²/hr MAX / 69 m²/hr Draft
- 38% faster than conventional Mimaki in Draft mode (1.3× vs TS55-1800 at equivalent image quality). Even and uniform solid coloring at low passes — combining high production and high quality.
Weaving Dot Technology
- New ejection control technology ejects near-spherical ink droplets reducing unevenness and smearing. Better solid coloring, sharper text and ruled lines, smoother images than ever before. Minimum 4 pl drop.
Cloth Wiper (Unique to TS330)
- Cloth wipers absorb ink from the nozzle surface — unlike conventional rubber wipers which scrape it. Reduces ink splatter on the head station, reduces maintenance frequency around the head and cap, easier to clean.
V-Shape Cutting Function
- Automatically tapers the media into a V-shape before wrapping around the paper core. Ensures the centre of media attaches precisely to the core, reducing human error. Helps conserve media from unused odd ends.
MRA — Smartphone Remote Access
- Monitor printer status and operate the panel from a smartphone over a same-segment network. Check ink types, heater temperature, alerts. Pre-heat the machine remotely before arriving at the job site.
4/6/7/8C Ink Sets + Sb411 ECO PASSPORT
- Flexible ink configuration: 4C (BMYK), 6C (BMYK+Fy+Fp or +Lm+Lbl), 7C (BMYK+Lm+Lbl+Lk), 8C (BMYK+Lm+Lbl+Fy+Fp). Sb411 certified ECO PASSPORT. Reduced smoke during sublimation.
