Gongzheng Apsaras G4L
1.9m Sublimation Printer | 4× Epson I3200 A1 Heads | Up to 185 m²/hr | Anti-Collision System | 8-Color Option | Sportswear / Fashion / Home Textiles
OVERVIEW

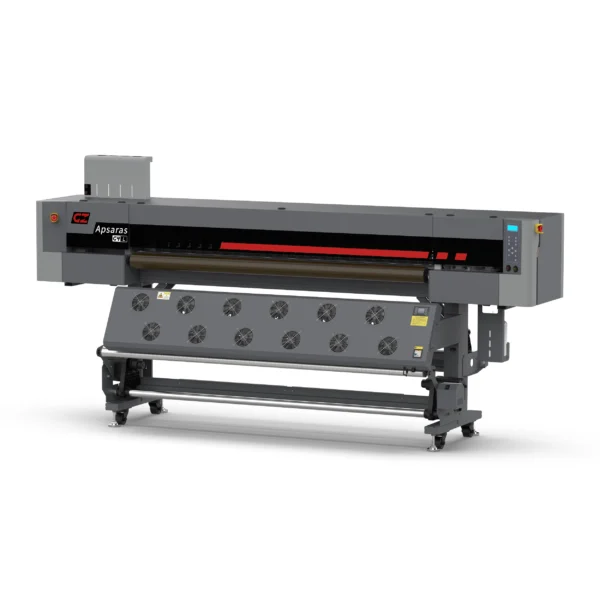

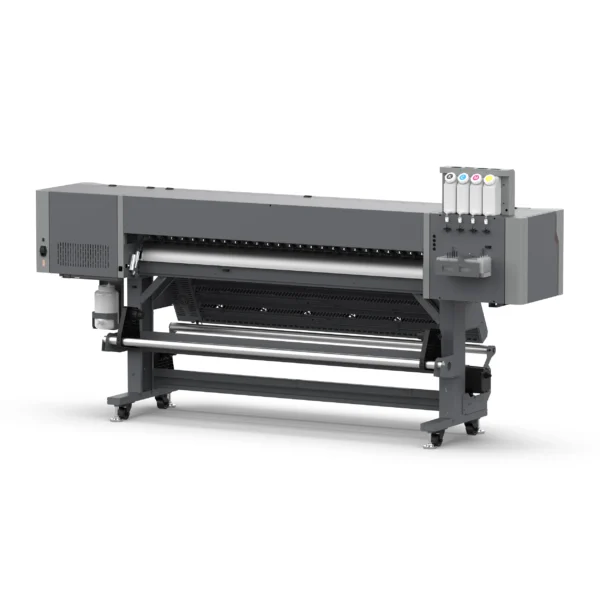

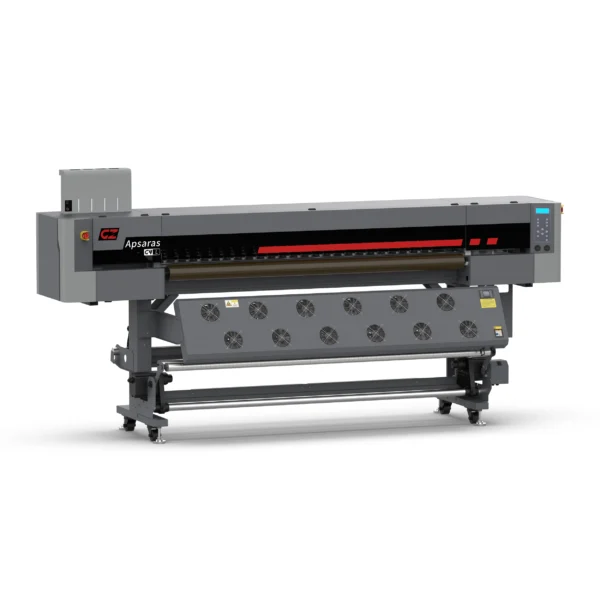

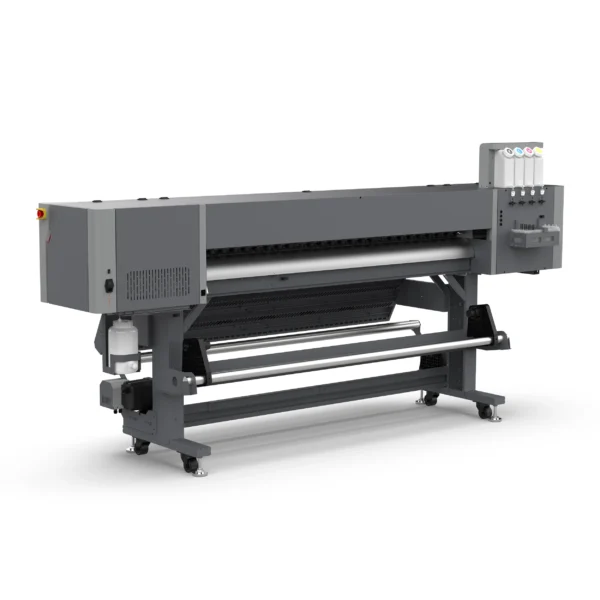

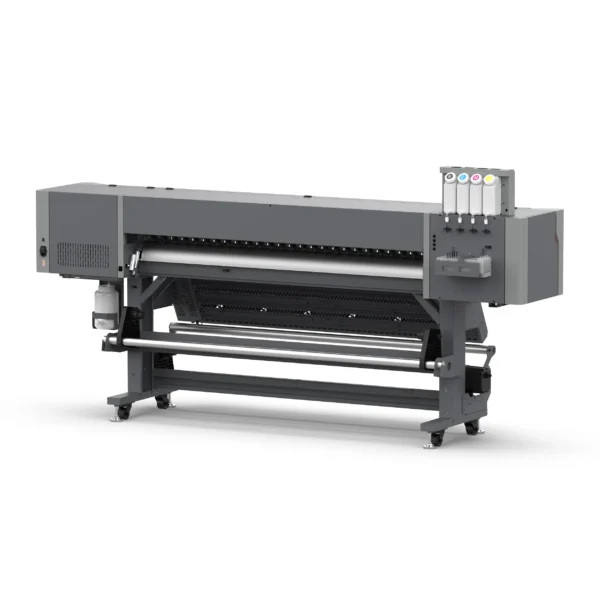

The GongZheng Apsaras G4L is an entry-level 1.9-meter dye-sublimation transfer paper printer that brings 4-head performance and 1.9m production width to businesses that need more than the G2 can offer, without the industrial complexity of the G4. Powered by 4× staggered Epson I3200 A1 printheads, it delivers the same 185 m²/hr draft speed as the G4, with the front-position media system and compact design philosophy of the G2. The unique Anti-Collision System protects printheads from media misfeeds, the 3-litre bulk ink tanks enable extended unattended production, and optional 8-color capability opens higher-margin fashion and sportswear applications.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Gongzheng Apsaras G4L?
| Model | Apsaras G4L |
| Print Heads | 4 × Epson I3200 A1 — staggered configuration |
| Ink Type | GS High Density Sublimation Transfer Ink — OEKO-TEX® ECO PASSPORT certified |
| Color Configuration | K.C.Y.M. (standard) Optional 8-color: K.C.Y.M. + S1.S2.S3.S4 |
| Ink Supply System | 3-Litre Bulk Ink Supply System with Ink Cartridges |
| Printing Width | Up to 1,950 mm (1.9 m) |
| Media Type | Transfer Paper (55 to 100 gsm) |
| Print Speed — Draft | 360 × 1200 dpi 185 m²/hr |
| Print Speed — Production | 360 × 1200 dpi 165 m²/hr |
| Print Speed — High-Res | 720 × 1200 dpi 102 m²/hr |
| Print Speed — Photo | 720 × 1200 dpi 88 m²/hr |
| Drying System | Intelligent Sectionable Control IR Dryer |
| Feeder | Feeding: 200 m Taking up: 200 m |
| Roll Diameter | Up to 150 mm |
| Safety Feature | Anti-Collision System — protects printhead carriage from media misfeed damage |
| Data Interface | External: Ethernet Internal: Fiber Optical |
| Software | FlexiPRINT / Ergosoft + GZ Printer Manager |
| Working Environment | Temperature: 18°C–30°C Humidity: 35%–65% |
| Power | Single Phase, 50Hz/AC, 220V±10%, 2A (Printer) + 27A (IR Dryer) |
| Packed Size (L×W×H) | 3600 × 1100 × 920 mm |
| Installed Size (L×W×H) | 3351 × 1033 × 1670 mm |
| Gross Weight / Net Weight | 510 kg / 350 kg |
Description
Print Quality & Color
- 4× staggered Epson I3200 A1 printheads — quad head configuration delivering 185 m²/hr draft and 165 m²/hr production at 1.9 m width
- GZ Variable Dot Technology — flawless skin tones, smoother gradients, crisp text and intricate detail at full production speed
- Standard K.C.Y.M. 4-color configuration for all standard sublimation applications
- Optional 8-color K.C.Y.M. + S1.S2.S3.S4 for wider gamut and spot color accuracy on premium fashion and sportswear
- All print modes at 1200 dpi (360 × 1200 draft/production, 720 × 1200 High-Res/Photo)
- Software: FlexiPRINT / Ergosoft + GZ Printer Manager for professional color management
Media Handling & Safety
- Anti-Collision System — protects printhead carriage from collision damage during media misfeeds, unique to the G4L
- Grooving Anti-Wrinkle Platen — pressure-adjustable pinch rollers with grooving platen and post-spreading roller for wrinkle-free feeding
- Especially effective on dark-color transfer papers where wrinkle prevention is critical for color consistency
- Front-position take-up system — space-saving design, easy operator access for sample collection
- Transfer paper compatibility: 55 to 100 gsm
- Feeding: 200 m; Taking up: 200 m — suitable for sustained production runs
- Roll diameter up to 150 mm
Ink System & Production Efficiency
- 3-litre bulk ink tanks per channel — big volume output, easy maintenance, long unattended operation
- Significantly lower ink changeover frequency vs. standard cartridge systems
- Auto Capping & Wiping System — maintains printhead health, ensures excellent print quality and sustained productivity
- Intelligent Sectionable Control IR Dryer — efficient and uniform drying across the full 1.9 m print width
- Data interface: External Ethernet + Internal Fiber Optical — fast, reliable data transfer
- Single-phase power — 220V±10%, 2A (Printer) + 27A (IR Dryer) — standard commercial installation
Sustainable & Certified for Textile Supply Chains
- GS High Density Sublimation Transfer Ink certified by OEKO-TEX® ECO PASSPORT
- Meets stringent criteria for human health and environmental safety throughout the textile supply chain
- Suitable for supply chain partnerships with global sportswear and fashion brands
- Water-based sublimation inks — no harmful solvents
