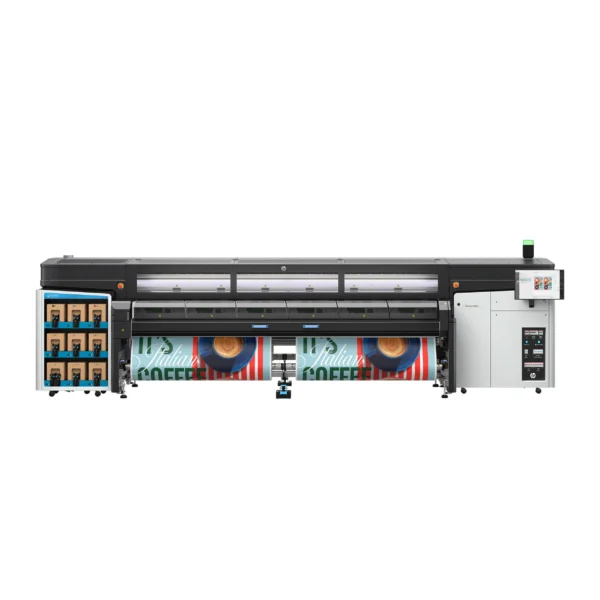

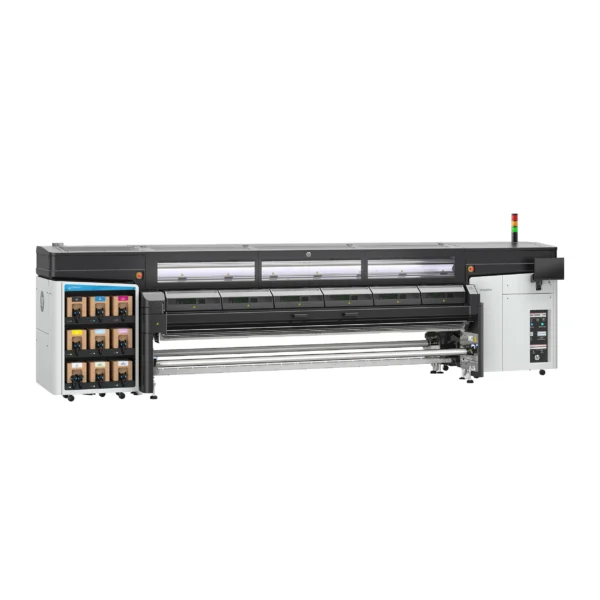

HP Latex FS50W
126-Inch Superwide Roll-to-Roll Production Printer with White Ink | HP 883 5-Litre Inks | 121 m²/hr | Scalable Platform
OVERVIEW
The HP Latex FS50 W Printer adds integrated white ink capability to the superwide HP Latex FS50 platform — enabling print service providers to unlock high-margin white ink applications at 126-inch (3.2 m) production widths. With 4 white print modes (White Spot, Overflood, 3-Layer, 5-Layer), a dedicated HP 886 White Latex Printhead, and HP 883 3-litre White Ink Cartridge alongside the standard 5-litre color cartridges, the FS50W delivers outstanding versatility across transparent films, dark substrates, backlit media, and premium décor applications — all at the full production speeds of the FS50.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE HP Latex FS50W?
| Print Resolution | Up to 1200 × 1200 dpi |
| Technology | HP Latex Printing Technologies — HP Latex Gen 4 Inks |
| Ink Types | Water-based HP Latex Inks — 9 cartridges (CMYK, LC, LM, Optimizer, Overcoat, White) |
| Color Cartridge Size | 5 litres (HP 883) — upgradeable to 10L with B3SG0A |
| White Cartridge Size | 3 litres (HP 883 White — G0Z44A) |
| Printheads | 9 HP 886 printheads (6 HP Latex Universal, 2 HP Latex Optimizer, 1 HP Latex White) |
| Color Repeatability | 95% of colors ≤ 2 dE2000 |
| Color Print Speed | 1302.43 ft²/hr (2-pass) 957.99 ft²/hr (3-pass) 742.71 ft²/hr (4-pass) 527.43 ft²/hr (6-pass) 409.03 ft²/hr (8-pass) 312.15 ft²/hr (10-pass) |
| White Print Speed | 581.25 ft²/hr (White Spot, 60%) 182.99 ft²/hr (White Overflood, 100%) 107.64 ft²/hr (3-Layer, 60%) 35.52 ft²/hr (5-Layer) |
| White Print Modes | 4 modes: White Spot · White Overflood · 3-Layer · 5-Layer |
| Gamut | Up to 30% wider gamut than leading UV alternatives at high speed (HP Latex Gen 4, ECI2002 target) |
| Max Media Width | 3.2 m (single roll) 2 × 1.60 m (optional dual roll) 2 × 1.53 m (optional jumbo dual roll) |
| Max Roll Weight | Up to 160 kg (single) Up to 300 kg (with diverter roller) 2 × 70 kg (dual roll) 2 × 200 kg (jumbo dual roll) |
| Max Roll Diameter | 30 cm (standard) 40 cm (with optional diverter roller) |
| Max Media Thickness | Up to 0.4 mm (default) Up to 2.0 mm (custom carriage height setting) |
| Media Types | Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, fabrics, mesh, textiles |
| Media Handling | Roll-to-roll, double-sided blockout, dual-roll (optional), roll-to-freefall (optional), ink collector (optional) |
| Connectivity | Intel I210-T1 Gigabit Ethernet (1000Base-T) HP Internal Print Server + Touch Monitor |
| Dimensions (W×D×H) | 574 × 138 × 167 cm (printer) |
| Printer Weight | 1,323 kg Shipping: 2,110 kg |
| Operating Conditions | 15–30°C 20–70% RH (non-condensing) |
| Power Consumption | 12–13 kW (printing) 510 W (ready) 110 W (low power) 100 W (shutdown) |
| Power Requirements | 200–240 / 380–415 V Delta/Wye, three-phase, PE; 50/60 Hz; 56/35 A |
| Acoustics | 71 dB(A) operating 58 dB(A) idle |
| Warranty | One-year limited hardware warranty |
Description
White Ink — 4 Modes at Production Scale
- 4 white print modes at 126-inch (3.2 m) production width: White Spot, Overflood, 3-Layer, 5-Layer
- White print speeds: 54 m²/hr (White Spot, 60%) · 17 m²/hr (White Overflood, 100%) · 10 m²/hr (3-Layer, 60%) · 3.3 m²/hr (5-Layer)
- 1 dedicated HP 886 White Latex Printhead (G0Z21A) — user-replaceable
- HP 883 3-litre White Latex Ink Cartridge (G0Z44A) — dedicated white channel separate from 5-litre color cartridges
- Enables: opaque prints on dark and transparent substrates, backlit media with white underflood, premium décor and soft signage applications
Stunning — Quality That Drives High Margins
- Up to 30% wider gamut at high speed vs. leading UV alternatives (HP Latex Gen 4 inks, Venture Electronics Spain testing, ECI2002 target)
- Preserves media gloss and feel — water-based inks do not alter substrate surface characteristics
- Consistent color across global fleet with HP Configuration Center
- Wide range of applications: thin films, vinyl, odorless backlit textiles, outdoor banners, vehicle graphics, wallpaper, window graphics
- Long-term print-to-print repeatability: 95% of colors ≤ 2 dE2000
Scalable — As Your Business Grows
- Scalable platform with future-proof design — integrate optional enhancements as business needs evolve
- Built to last: at least 70% of previous-generation HP Latex printers still in use in 2024, averaging 6–7 years in service
- 5-litre HP 883 color cartridges standard — upgradeable to 10-litre with B3SG0A
- White-specific HP Latex 2700/FS White Uptime Kit (55P21A) for white ink channel maintenance
- Optional dual roll (2 × 1.6 m) or jumbo dual roll (2 × 1.53 m) for double productivity
- Optional inline slitters (M2J33A) for automated slit-to-finish workflow
- Optional roll-to-freefall (4R4W5A) for unattended long-run production
- Optional ink collector (3Y0K4A) for porous textile printing
- Speeds up to 89 m²/hr (3-pass) for tight turnarounds
- Auto printhead cleaning and intuitive touchscreen minimise operator intervention
- HP PrintOS Live Production for remote fleet monitoring (HP Professional Print Service Plan)
Sustainable — With Environmental Certifications
- Water-based HP Latex Inks — odorless prints, no hazardous air pollutants (EPA Method 311 — none detected)
- No special ventilation equipment required
- UL ECOLOGO® certified HP 883 Latex inks meet stringent human health & environmental criteria
- UL GREENGUARD Gold certified — low chemical emissions. Unrestricted room size; 33.4 m² office; 94.6 m² classroom
- HP Planet Partners recycling programme for ink cartridges and consumables
- PVC alternative media profile database for environmentally-preferred substrate choices
