OBSOLETE

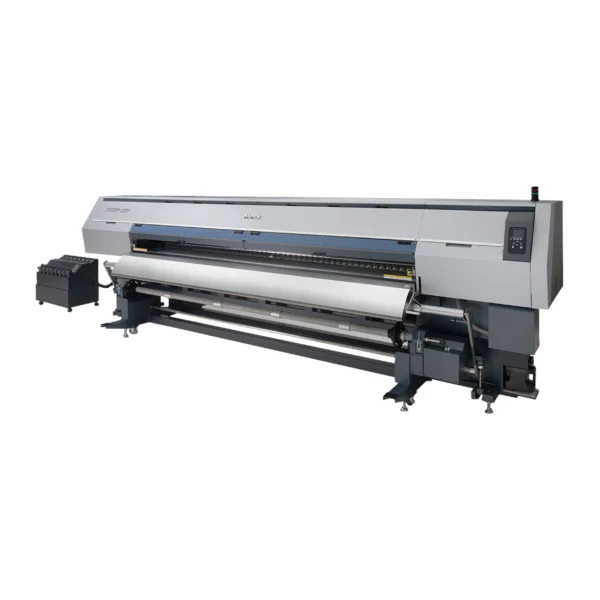

Mimaki TS500P-3200
OVERVIEW
The Mimaki TS500P-3200 was a 3.2 m superwide sublimation transfer printer aimed at home furnishing fabrics and indoor soft signage, using a 12-printhead configuration and MAPS4 anti-banding technology to print at up to 180 m²/h on extra-wide transfer paper.
Current Replacement
The TS330-3200DS is a 3.2 m hybrid printer that adds direct-to-fabric printing alongside sublimation transfer, on Mimaki’s proven 330 Series print engine. It reaches up to 968 sqft/hr (approx. 90 m²/h) and is the recommended upgrade path for customers who relied on the TS500P-3200’s superwide transfer-paper output.
Check out
- TECHNICAL SPECIFICATIONS
| Series | Mimaki TS500 Series (Flagship Production Sublimation Transfer) |
| Print Width | Up to 1,900 mm (74.8 inches) — 74-inch class |
| Max Speed | 150 m²/h (1,615 ft²/hr) on sublimation transfer paper |
| Print Heads | 6 piezo heads in a staggered configuration (3 staggered × 2) |
| Ink | Sb300 (CMYK, fast-drying, lower cost) — ECO PASSPORT certified |
| Ink Supply | 2-litre bottled ink (via MDM-20 degassing module) |
| Degassing Module | MDM-20 — eliminates gases/bubbles in-line; enables undegassed bottled inks |
| Media Handling | Auto Media Feeder (AMF); optional MJF500-1800 industrial system (130 kg / 20″ OD rolls) |
| Uptime Features | NCU nozzle check; NRS nozzle recovery; continuous operation design |
| Connectivity | Ethernet / USB 2.0; Remote Event Notification |
| Status | Discontinued |
