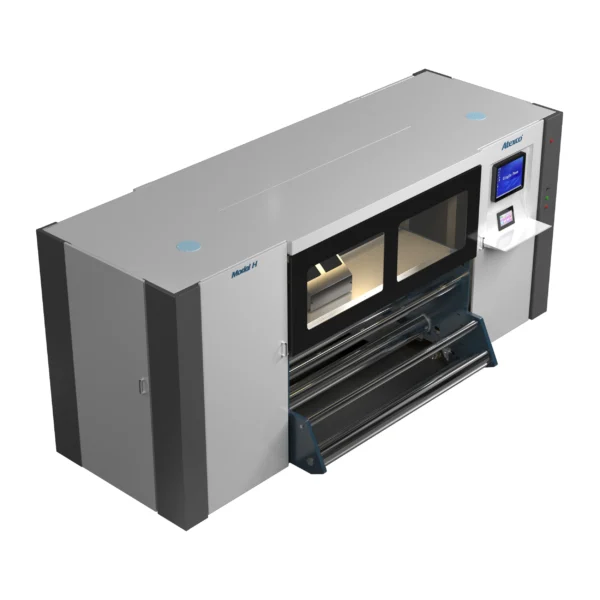

Atexco Model H
High Speed Sublimation Printer | 1800mm | 620 m/hr | Kyocera Industrial DOD Piezo Heads
OVERVIEW
The Atexco Model H is a high-speed industrial sublimation printer built around Kyocera Industrial DOD (Drop-on-Demand) Piezo print heads — 16 heads in the standard 1816F-4 configuration — delivering 1-pass production at 620 m/hr and 2-pass at 400 m/hr on a 1.5m-wide reference substrate. With a maximum printing width of 1,800 mm on paper up to 1,850 mm wide, the Model H is designed for high-volume sublimation production where speed is the primary requirement and the Kyocera head platform provides the industrial reliability, head longevity, and ink throughput capacity to support continuous high-output operation. An achievement from the experience of serving 2,000+ customers globally since 1992, the Model H is Atexco’s high-speed answer for textile operations that have outgrown conventional carriage-based sublimation printers.
- TECHNICAL SPECIFICATIONS
- WHY CHOOSE Atexco Model H?
| Model | Model H (1816F-4) |
| Printing Technology | Industrial DOD Piezo Printing |
| Print Heads | Kyocera Industrial Heads, 16 pcs |
| Max. Printing Width | 1800 mm |
| Max. Paper Width | 1850 mm |
| Ink Chemistry | Sublimation Ink |
| Ink Colors | CMYK (4 colors) |
| Ink Tank Capacity | 10 L per color |
| Suitable Media | Sublimation Paper (minimum 25 gsm) |
| 1-Pass Speed (1.5m ref.) | 620 m/hr |
| 2-Pass Speed (1.5m ref.) | 400 m/hr |
| Feeding Roll | Diameter 1100 mm / Weight 1200 kg |
| Winding Roll | Diameter 500 mm / Weight 600 kg |
| Operating Temperature | 22°C – 28°C |
| Humidity | — |
| Noise | 60 dB (distance dependent) |
| Power Supply | AC 380V (3-phase / 5 wires), 50/60 Hz |
| Power Consumption | 18 kW |
| Computer System | Windows 10 |
| Computer Config. | i7-11700 / 32G RAM / 1TB SSD / 64-bit |
| Display | User-machine interface |
| Interface | 1000MB Optical Fibre |
| Server Software | AJet Server |
| RIP Software | AJet RIP (standard) or third-party software |
| Image Format | JPEG / TIF / BMP |
| Color Format | RGB / CMYK |
| Language | Chinese / English |
| Machine Dimensions | Approx. 10m × 2.65m × 1.90m |
| Machine Weight | Approx. 2,700 kg |
Description
620 m/hr 1-Pass — Highest Speed in the Atexco Sublimation Range
- In 1-pass mode, the Model H delivers 620 m/hr at a 1.5m reference width — exceeding the Model X Plus 1800mm’s 400 m/hr 1-pass by 55%. In 2-pass mode at 400 m/hr, the Model H matches the Model X Plus 1-pass speed at higher quality output. This throughput is enabled by Kyocera Industrial DOD Piezo heads configured in a 16-head array, delivering continuous high-volume ink output that carriage scan-based printers cannot match at equivalent quality.
Kyocera Industrial DOD Piezo Heads — 16 Heads, Industrial Reliability
- The Model H runs 16 Kyocera Industrial DOD Piezo print heads — industrial-grade components designed for continuous high-duty-cycle production rather than the shorter print cycles of commercial-grade heads. Kyocera’s industrial head platform provides the longevity, consistency, and ink throughput capacity that 620 m/hr sustained production demands.
1800mm Maximum Print Width — Fabric and Transfer Paper
- With a maximum print width of 1800 mm on media up to 1850 mm wide, the Model H covers the standard industrial sublimation width for fashion fabric, home textile, and transfer paper production — from sublimation paper as light as 25 gsm through a full range of transfer papers. Feeding roll diameter up to 1100 mm (1200 kg) and winding roll up to 500 mm (600 kg) enable extended uninterrupted production runs.
AJet Server & RIP — Purpose-Built for High-Speed Production
- The Model H runs AJet Server software with AJet RIP as standard — a workflow and RIP platform purpose-built for high-speed inkjet head configurations. Third-party RIP software is also supported. Print data format covers JPEG, TIF, and BMP in both RGB and CMYK color spaces — standard production file formats that connect directly to most prepress and design workflows without format conversion overhead.
Full Connectivity — Gigabit Optical Fibre Interface
- A 1000MB optical fibre interface delivers the data bandwidth required to feed 16 Kyocera heads at 620 m/hr continuously without pipeline bottlenecks. Windows 10 on an i7-11700/32G/1TB/64-bit computer configuration provides the processing headroom the AJet Server requires for uninterrupted high-speed RIP and print management.
Safety & Environment — Full Body Coverage, Low Noise
- Full body coverage safety enclosure protects the operator during high-speed production. Operating temperature range of 22–28°C accommodates standard industrial production environments. Noise level of 60 dB (distance dependent) is low for a machine operating at these throughput levels. AC 380V 3-phase / 5-wire at 50/60Hz with 18 kW power consumption.
